  • Led Lens Caps

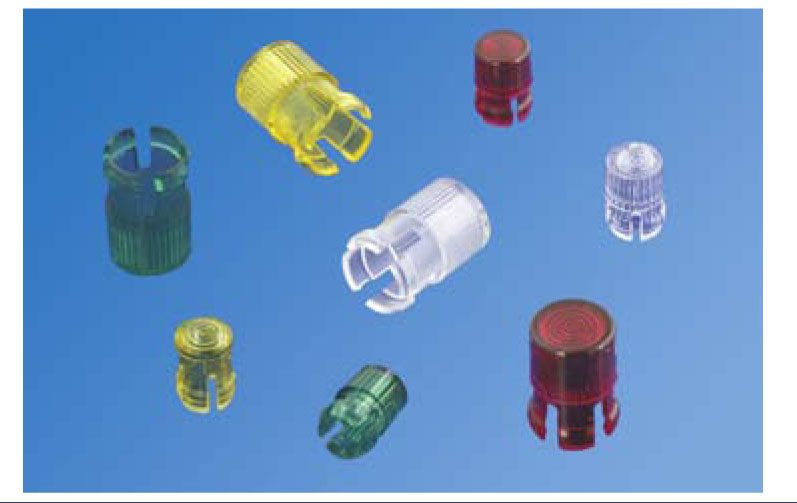

Designed for use with T-1 or T-1 3/4 LEDs, these Lens Caps are available in round or square configurations. They snap-mount through the front panel for easy, light-finger pressure, installation. The LED is inserted into the cap from behind the panel and held securely in place.

The Lens Cap protects the LED from physical damage while guarding the components from electrostatic discharge (ESD), up to 16 KV. More economical than indicator light assemblies, the caps feature striated lines and fresnel rings which permit up to 180 viewing angles with either diffused or non-diffused LED's. They provide exceptionally high contrast and visibility.
1 - 25 of 28 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items

Item #

Item Name

LED Size

Color

Mounting Hole Size

Minimum Mounting Centers

N/A Standard Height Round Cap N/A T-1 N/A Red N/A 0.171 in4.3 mm N/A 0.250 in6.4 mm
N/A Standard Height Round Cap N/A T-1 N/A Green N/A 0.171 in4.3 mm N/A 0.250 in6.4 mm
N/A Standard Height Round Cap N/A T-1 N/A Yellow N/A 0.171 in4.3 mm N/A 0.250 in6.4 mm
N/A Standard Height Round Cap N/A T-1 N/A Clear N/A 0.171 in4.3 mm N/A 0.250 in6.4 mm
N/A Standard Height Round Cap N/A T-1 3/4 N/A Red N/A 0.250 in6.4 mm N/A 0.375 in9.5 mm
N/A Standard Height Round Cap N/A T-1 3/4 N/A Green N/A 0.250 in6.4 mm N/A 0.375 in9.5 mm
N/A Standard Height Round Cap N/A T-1 3/4 N/A Yellow N/A 0.250 in6.4 mm N/A 0.375 in9.5 mm
N/A Standard Height Round Cap N/A T-1 3/4 N/A Clear N/A 0.250 in6.4 mm N/A 0.375 in9.5 mm
N/A Low Profile Round Cap N/A T-1 N/A Red N/A 0.171 in4.3 mm N/A 0.250 in6.4 mm
N/A Low Profile Round Cap N/A T-1 N/A Green N/A 0.171 in4.3 mm N/A 0.250 in6.4 mm
N/A Low Profile Round Cap N/A T-1 N/A Yellow N/A 0.171 in4.3 mm N/A 0.250 in6.4 mm
N/A Low Profile Round Cap N/A T-1 N/A Clear N/A 0.171 in4.3 mm N/A 0.250 in6.4 mm
N/A Low Profile Round Cap N/A T-1 3/4 N/A Red N/A 0.250 in6.4 mm N/A 0.375 in9.5 mm
N/A Low Profile Round Cap N/A T-1 3/4 N/A Green N/A 0.250 in6.4 mm N/A 0.375 in9.5 mm
N/A Low Profile Round Cap N/A T-1 3/4 N/A Yellow N/A 0.250 in6.4 mm N/A 0.375 in9.5 mm
N/A Low Profile Round Cap N/A T-1 3/4 N/A Clear N/A 0.250 in6.4 mm N/A 0.375 in9.5 mm
N/A Standard Height Square Cap N/A T-1 3/4 N/A Red N/A 0.250 in6.4 mm N/A 0.375 in9.5 mm
N/A Standard Height Square Cap N/A T-1 3/4 N/A Green N/A 0.250 in6.4 mm N/A 0.375 in9.5 mm
N/A Standard Height Square Cap N/A T-1 3/4 N/A Yellow N/A 0.250 in6.4 mm N/A 0.375 in9.5 mm
N/A Standard Height Square Cap N/A T-1 3/4 N/A Clear N/A 0.250 in6.4 mm N/A 0.375 in9.5 mm
N/A Low Profile Square Cap N/A T-1 N/A Red N/A 0.171 in4.3 mm N/A 0.250 in6.4 mm
N/A Low Profile Square Cap N/A T-1 N/A Green N/A 0.171 in4.3 mm N/A 0.250 in6.4 mm
N/A Low Profile Square Cap N/A T-1 N/A Yellow N/A 0.171 in4.3 mm N/A 0.250 in6.4 mm
N/A Low Profile Square Cap N/A T-1 N/A Clear N/A 0.171 in4.3 mm N/A 0.250 in6.4 mm
N/A Low Profile Square Cap N/A T-1 3/4 N/A Red N/A 0.250 in6.4 mm N/A 0.375 in9.5 mm
