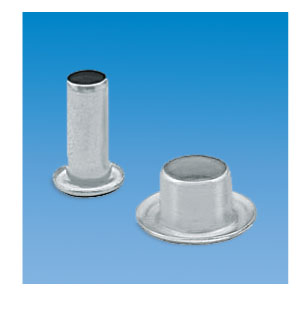

  • Wide Roll Eyelets

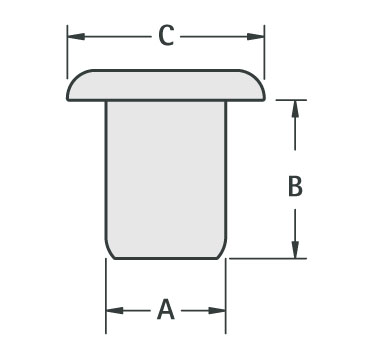

  • Wide Roll Eyelets - Schematic Diagram
A choice of the most popular sizes in use for PC board and electronic assembly applications.
1 - 21 of 21 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Outside Barrel Diameter A

Inside Barrel Diameter A

Length Under Flange B

Flange Diameter C

N/A 0.059 in1.49 mm N/A 0.045 in1.14 mm N/A 0.062 in1.57 mm N/A 0.105 in2.7 mm
N/A 0.059 in1.49 mm N/A 0.045 in1.14 mm N/A 0.093 in2.36 mm N/A 0.105 in2.7 mm
N/A 0.059 in1.49 mm N/A 0.045 in1.14 mm N/A 0.125 in3.18 mm N/A 0.105 in2.7 mm
N/A 0.059 in1.49 mm N/A 0.045 in1.14 mm N/A 0.156 in3.96 mm N/A 0.105 in2.7 mm
N/A 0.059 in1.49 mm N/A 0.045 in1.14 mm N/A 0.187 in4.75 mm N/A 0.105 in2.7 mm
N/A 0.059 in1.49 mm N/A 0.045 in1.14 mm N/A 0.219 in5.56 mm N/A 0.105 in2.7 mm
N/A 0.089 in2.26 mm N/A 0.070 in1.78 mm N/A 0.093 in2.36 mm N/A 0.150 in3.8 mm
N/A 0.089 in2.26 mm N/A 0.070 in1.78 mm N/A 0.125 in3.18 mm N/A 0.150 in3.8 mm
N/A 0.089 in2.26 mm N/A 0.070 in1.78 mm N/A 0.156 in3.96 mm N/A 0.150 in3.8 mm
N/A 0.089 in2.26 mm N/A 0.070 in1.78 mm N/A 0.187 in4.75 mm N/A 0.150 in3.8 mm
N/A 0.089 in2.26 mm N/A 0.070 in1.78 mm N/A 0.219 in5.56 mm N/A 0.150 in3.8 mm
N/A 0.121 in3.07 mm N/A 0.102 in2.59 mm N/A 0.093 in2.36 mm N/A 0.200 in5.1 mm
N/A 0.121 in3.07 mm N/A 0.102 in2.59 mm N/A 0.125 in3.18 mm N/A 0.200 in5.1 mm
N/A 0.121 in3.07 mm N/A 0.102 in2.59 mm N/A 0.156 in3.96 mm N/A 0.200 in5.1 mm
N/A 0.121 in3.07 mm N/A 0.102 in2.59 mm N/A 0.187 in4.75 mm N/A 0.200 in5.1 mm
N/A 0.121 in3.07 mm N/A 0.102 in2.59 mm N/A 0.219 in5.56 mm N/A 0.200 in5.1 mm
N/A 0.121 in3.07 mm N/A 0.102 in2.59 mm N/A 0.250 in6.35 mm N/A 0.200 in5.1 mm
N/A 0.152 in3.86 mm N/A 0.132 in3.35 mm N/A 0.125 in3.18 mm N/A 0.245 in6.2 mm
N/A 0.152 in3.86 mm N/A 0.132 in3.35 mm N/A 0.156 in3.96 mm N/A 0.245 in6.2 mm
N/A 0.152 in3.86 mm N/A 0.132 in3.35 mm N/A 0.187 in4.75 mm N/A 0.245 in6.2 mm
N/A 0.152 in3.86 mm N/A 0.132 in3.35 mm N/A 0.219 in5.56 mm N/A 0.245 in6.2 mm
