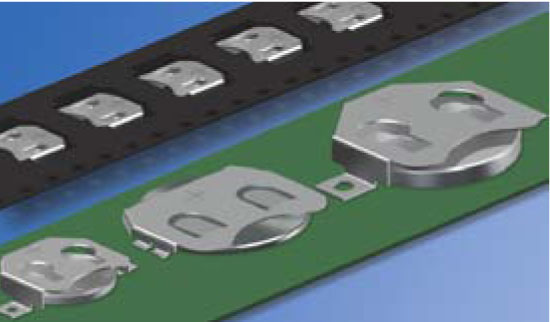

  • 12 to 24 Millimeter (mm) Thru-Hole (THM) & Surface Mount (SMT) Coin Cell Retainers
Battery retainers are suited for high density PCB packaging. Engineered with reliable spring tension, these contacts assure low resistance while firmly securing the battery within the retainer.
  • Compatible with all wave and reflow operations
  • Solder tails located outside of retainer body which facilitates visual inspection of the solder joints
  • Flow-hole solder tail designed for increased joint strength
  • Compatible with most vacuum and mechanical pick & place assembly systems
  • Matte Tin Plate for lower soldering temperatures ideal where other temperature sensitive components are being used
  • Tin-Nickel plated retainers are ideal for lead free, high temperature soldering applications
1 - 25 of 55 | Results Per Page | View | Unit of Measure
1 2 3
Request Information Compare Items

Item #

Plate Material

Dimension A

Dimension B

Dimension F

Mount Type

N/A Tin-Nickel N/A 0.520 in13.2 mm N/A 0.265 in6.7 mm N/A 0.125 in3.2 mm N/A Surface
N/A Tin-Nickel N/A 0.664 in16.9 mm N/A 0.344 in8.7 mm N/A 0.125 in3.2 mm N/A Surface
N/A Tin-Nickel N/A 0.831 in21.1 mm N/A 0.298 in7.6 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 0.831 in21.1 mm N/A 0.416 in10.6 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 0.835 in21.2 mm N/A 0.291 in7.4 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 0.831 in21.1 mm N/A 0.416 in10.6 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 0.939 in23.9 mm N/A 0.475 in12.1 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 0.939 in23.9 mm N/A 0.475 in12.1 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 1.000 in25.4 mm N/A 0.313 in8.0 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 1.000 in25.4 mm N/A 0.506 in12.9 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 1.000 in25.4 mm N/A 0.506 in12.9 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 0.520 in13.2 mm N/A 0.265 in6.7 mm N/A 0.125 in3.2 mm N/A Surface
N/A Tin-Nickel N/A 0.664 in16.9 mm N/A 0.344 in8.7 mm N/A 0.125 in3.2 mm N/A Surface
N/A Tin-Nickel N/A 0.831 in21.1 mm N/A 0.298 in7.6 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 0.831 in21.1 mm N/A 0.416 in10.6 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 0.835 in21.2 mm N/A 0.291 in7.4 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 0.831 in21.1 mm N/A 0.416 in10.6 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 0.939 in23.9 mm N/A 0.475 in12.1 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 0.939 in23.9 mm N/A 0.475 in12.1 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 1.000 in25.4 mm N/A 0.313 in8.0 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 1.000 in25.4 mm N/A 0.506 in12.9 mm N/A 0.200 in5.1 mm N/A Surface
N/A Tin-Nickel N/A 1.000 in25.4 mm N/A 0.506 in12.9 mm N/A 0.200 in5.1 mm N/A Surface
N/A Matte Tin N/A 0.520 in13.2 mm N/A 0.265 in6.7 mm N/A 0.125 in3.2 mm N/A Surface
N/A Matte Tin N/A 0.664 in16.9 mm N/A 0.344 in8.7 mm N/A 0.125 in3.2 mm N/A Surface
N/A Matte Tin N/A 0.831 in21.1 mm N/A 0.298 in7.6 mm N/A 0.200 in5.1 mm N/A Surface
