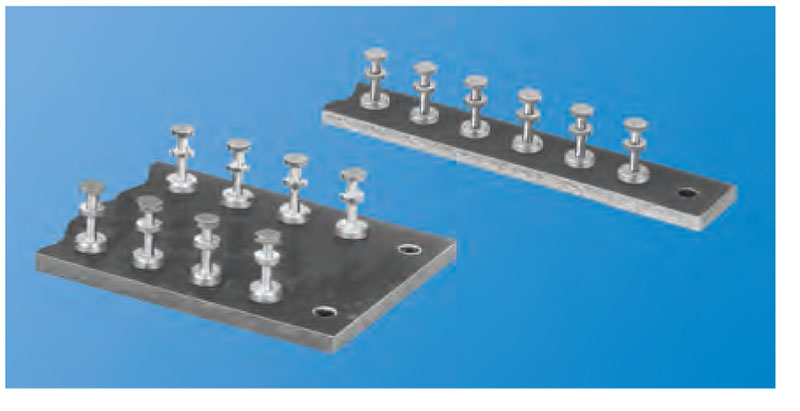

Terminal Boards On Keystone Electronics Corp.

COMPANY HEADER

1 - 25 of 200 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »

Request Information Compare Items

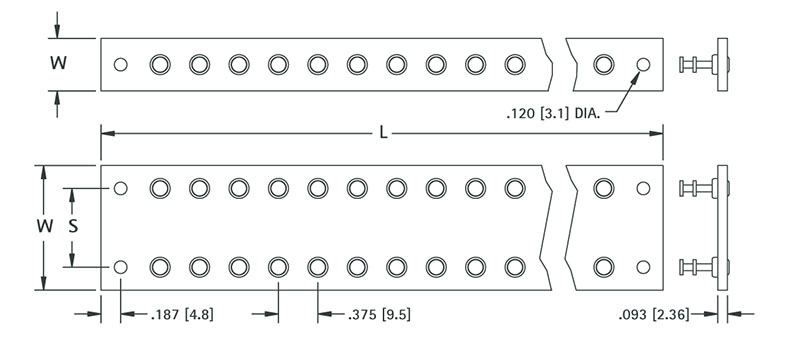

Item #	Dimension W	Dimension S	Dimension L	Dimension A	Number of Terminals Each Side

15431	N/A 0.312 in7.9 mm	N/A Single Row	N/A 1.937 in49.2 mm	N/A	N/A 5
15432	N/A 0.312 in7.9 mm	N/A Single Row	N/A 3.687 in93.6 mm	N/A	N/A 12
15433	N/A 0.312 in7.9 mm	N/A Single Row	N/A 5.437 in138.1 mm	N/A	N/A 19
15434	N/A 0.312 in7.9 mm	N/A Single Row	N/A 7.187 in182.5 mm	N/A	N/A 26
15435	N/A 0.312 in7.9 mm	N/A Single Row	N/A 8.937 in227.0 mm	N/A	N/A 33
15436	N/A 0.875 in22.2 mm	N/A 0.562 in14.3 mm	N/A 1.937 in49.2 mm	N/A	N/A 5
15437	N/A 0.875 in22.2 mm	N/A 0.562 in14.3 mm	N/A 3.687 in93.6 mm	N/A	N/A 12
15438	N/A 0.875 in22.2 mm	N/A 0.562 in14.3 mm	N/A 5.437 in138.1 mm	N/A	N/A 19
15439	N/A 0.875 in22.2 mm	N/A 0.562 in14.3 mm	N/A 7.187 in182.5 mm	N/A	N/A 26
15440	N/A 0.875 in22.2 mm	N/A 0.562 in14.3 mm	N/A 8.937 in227.0 mm	N/A	N/A 33
15441	N/A 1.125 in28.6 mm	N/A 0.812 in20.6 mm	N/A 1.937 in49.2 mm	N/A	N/A 5
15442	N/A 1.125 in28.6 mm	N/A 0.812 in20.6 mm	N/A 3.687 in93.6 mm	N/A	N/A 12
15443	N/A 1.125 in28.6 mm	N/A 0.812 in20.6 mm	N/A 5.437 in138.1 mm	N/A	N/A 19
15444	N/A 1.125 in28.6 mm	N/A 0.812 in20.6 mm	N/A 7.187 in182.5 mm	N/A	N/A 26
15445	N/A 1.125 in28.6 mm	N/A 0.812 in20.6 mm	N/A 8.937 in227.0 mm	N/A	N/A 33
15531	N/A 0.312 in7.9 mm	N/A Single Row	N/A 1.937 in49.2 mm	N/A	N/A 5
15532	N/A 0.312 in7.9 mm	N/A Single Row	N/A 3.687 in93.6 mm	N/A	N/A 12
15533	N/A 0.312 in7.9 mm	N/A Single Row	N/A 5.437 in138.1 mm	N/A	N/A 19
15534	N/A 0.312 in7.9 mm	N/A Single Row	N/A 7.187 in182.5 mm	N/A	N/A 26
15535	N/A 0.312 in7.9 mm	N/A Single Row	N/A 8.937 in227.0 mm	N/A	N/A 33
15536	N/A 0.875 in22.2 mm	N/A 0.562 in14.3 mm	N/A 1.937 in49.2 mm	N/A	N/A 5
15537	N/A 0.875 in22.2 mm	N/A 0.562 in14.3 mm	N/A 3.687 in93.6 mm	N/A	N/A 12
15538	N/A 0.875 in22.2 mm	N/A 0.562 in14.3 mm	N/A 5.437 in138.1 mm	N/A	N/A 19
15539	N/A 0.875 in22.2 mm	N/A 0.562 in14.3 mm	N/A 7.187 in182.5 mm	N/A	N/A 26
15540	N/A 0.875 in22.2 mm	N/A 0.562 in14.3 mm	N/A 8.937 in227.0 mm	N/A	N/A 33

1 - 25 of 200 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »

Item #

Dimension W

Dimension S

Dimension L

Dimension A

Number of Terminals Each Side
