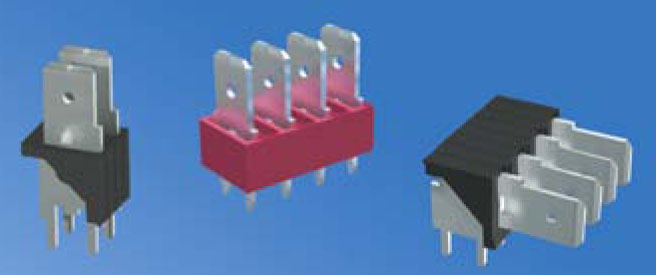

"Sturdi-Mount" PC Quick-Fit Headers On Keystone Electronics Corp.

COMPANY HEADER

Ideal for rugged multi-insertion applications
Pre-assembled header reduces PC assembly costs
Increases PC board retention strength
Keeps terminals perpendicular
Maintains position for wave soldering

1 - 25 of 30 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items

Item #	Item Name	Tab Material	Number of Tabs	Dimension L	Type

7802	N/A "Sturdi-Mount" PC Horizontal Quick-Fit Header	N/A Brass	N/A 2	N/A 0.362 in8.2 mm	N/A Horizontal
7803	N/A "Sturdi-Mount" PC Horizontal Quick-Fit Header	N/A Brass	N/A 3	N/A 0.562 in14.3 mm	N/A Horizontal
7804	N/A "Sturdi-Mount" PC Horizontal Quick-Fit Header	N/A Brass	N/A 4	N/A 0.762 in19.4 mm	N/A Horizontal
7805	N/A "Sturdi-Mount" PC Horizontal Quick-Fit Header	N/A Brass	N/A 5	N/A 0.962 in24.4 mm	N/A Horizontal
7806	N/A "Sturdi-Mount" PC Horizontal Quick-Fit Header	N/A Brass	N/A 6	N/A 1.162 in29.5 mm	N/A Horizontal
7822	N/A "Sturdi-Mount" PC Horizontal Quick-Fit Header	N/A Steel	N/A 2	N/A 0.362 in8.2 mm	N/A Horizontal
7823	N/A "Sturdi-Mount" PC Horizontal Quick-Fit Header	N/A Steel	N/A 3	N/A 0.562 in14.3 mm	N/A Horizontal
7824	N/A "Sturdi-Mount" PC Horizontal Quick-Fit Header	N/A Steel	N/A 4	N/A 0.762 in19.4 mm	N/A Horizontal
7825	N/A "Sturdi-Mount" PC Horizontal Quick-Fit Header	N/A Steel	N/A 5	N/A 0.962 in24.4 mm	N/A Horizontal
7826	N/A "Sturdi-Mount" PC Horizontal Quick-Fit Header	N/A Steel	N/A 6	N/A 1.162 in29.5 mm	N/A Horizontal
7812	N/A "Sturdi-Mount" PC Vertical Quick-Fit Header	N/A Brass	N/A 2	N/A 0.362 in8.2 mm	N/A Vertical
7813	N/A "Sturdi-Mount" PC Vertical Quick-Fit Header	N/A Brass	N/A 3	N/A 0.562 in14.3 mm	N/A Vertical
7814	N/A "Sturdi-Mount" PC Vertical Quick-Fit Header	N/A Brass	N/A 4	N/A 0.762 in19.4 mm	N/A Vertical
7815	N/A "Sturdi-Mount" PC Vertical Quick-Fit Header	N/A Brass	N/A 5	N/A 0.962 in24.4 mm	N/A Vertical
7816	N/A "Sturdi-Mount" PC Vertical Quick-Fit Header	N/A Brass	N/A 6	N/A 1.162 in29.5 mm	N/A Vertical
7832	N/A "Sturdi-Mount" PC Vertical Quick-Fit Header	N/A Steel	N/A 2	N/A 0.362 in8.2 mm	N/A Vertical
7833	N/A "Sturdi-Mount" PC Vertical Quick-Fit Header	N/A Steel	N/A 3	N/A 0.562 in14.3 mm	N/A Vertical
7834	N/A "Sturdi-Mount" PC Vertical Quick-Fit Header	N/A Steel	N/A 4	N/A 0.762 in19.4 mm	N/A Vertical
7835	N/A "Sturdi-Mount" PC Vertical Quick-Fit Header	N/A Steel	N/A 5	N/A 0.962 in24.4 mm	N/A Vertical
7836	N/A "Sturdi-Mount" PC Vertical Quick-Fit Header	N/A Steel	N/A 6	N/A 1.162 in29.5 mm	N/A Vertical
7817	N/A "Sturdi-Mount" PC Low Profile Quick-Fit Header	N/A Brass	N/A 2	N/A 0.320 in8.1 mm	N/A Low Profile
7818	N/A "Sturdi-Mount" PC Low Profile Quick-Fit Header	N/A Brass	N/A 3	N/A 0.517 in13.1 mm	N/A Low Profile
7819	N/A "Sturdi-Mount" PC Low Profile Quick-Fit Header	N/A Brass	N/A 4	N/A 0.713 in18.1 mm	N/A Low Profile
7820	N/A "Sturdi-Mount" PC Low Profile Quick-Fit Header	N/A Brass	N/A 5	N/A 0.910 in23.1 mm	N/A Low Profile
7821	N/A "Sturdi-Mount" PC Low Profile Quick-Fit Header	N/A Brass	N/A 6	N/A 1.107 in28.1 mm	N/A Low Profile
