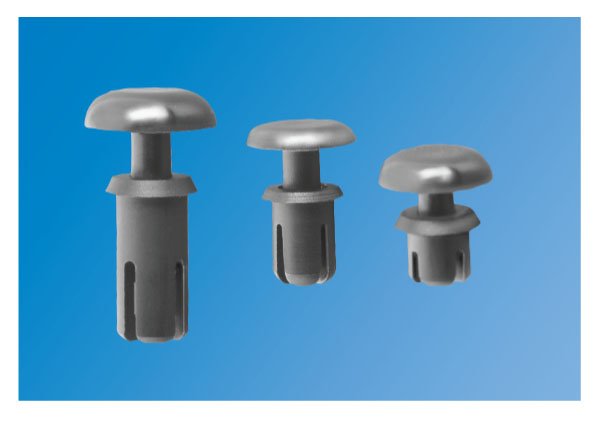

  • Snap Rivets
Attach panels and mounting hardware without any tooling. Leaves a clean cosmetic look once installed. Can be installed without access to underside. Removable so assembly can be easily repaired or upgraded.
1 - 11 of 11 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Panel Thickness T

Rivet Length L

Rivet Diameter D

Head Diameter A

Head Height B

N/A 0.051 in0.079 in1.3 mm2.0 mm N/A 0.130 in3.3 mm N/A 0.076 in1.9 mm N/A 0.165 in4.2 mm N/A 0.047 in1.2 mm
N/A 0.083 in0.110 in2.1 mm2.8 mm N/A 0.160 in4.0 mm N/A 0.076 in1.9 mm N/A 0.165 in4.2 mm N/A 0.047 in1.2 mm
N/A 0.114 in0.142 in2.9 mm3.6 mm N/A 0.190 in4.8 mm N/A 0.076 in1.9 mm N/A 0.165 in4.2 mm N/A 0.047 in1.2 mm
N/A 0.118 in0.157 in3.0 mm4.0 mm N/A 0.220 in5.6 mm N/A 0.138 in3.5 mm N/A 0.252 in6.4 mm N/A 0.063 in1.6 mm
N/A 0.146 in0.181 in3.7 mm4.6 mm N/A 0.240 in6.1 mm N/A 0.138 in3.5 mm N/A 0.252 in6.4 mm N/A 0.063 in1.6 mm
N/A 0.177 in0.217 in4.5 mm5.5 mm N/A 0.280 in7.1 mm N/A 0.138 in3.5 mm N/A 0.252 in6.4 mm N/A 0.063 in1.6 mm
N/A 0.217 in0.256 in5.5 mm6.5 mm N/A 0.310 in7.9 mm N/A 0.138 in3.5 mm N/A 0.252 in6.4 mm N/A 0.063 in1.6 mm
N/A 0.177 in0.217 in4.5 mm5.5 mm N/A 0.280 in7.1 mm N/A 0.158 in4.0 mm N/A 0.315 in8.0 mm N/A 0.071 in1.8 mm
N/A 0.217 in0.256 in5.5 mm6.5 mm N/A 0.310 in7.9 mm N/A 0.158 in4.0 mm N/A 0.315 in8.0 mm N/A 0.071 in1.8 mm
N/A 0.256 in0.295 in6.5 mm7.5 mm N/A 0.350 in9.0 mm N/A 0.158 in4.0 mm N/A 0.315 in8.0 mm N/A 0.071 in1.8 mm
N/A 0.295 in0.335 in7.5 mm8.5 mm N/A 0.390 in10.0 mm N/A 0.158 in4.0 mm N/A 0.315 in8.0 mm N/A 0.071 in1.8 mm
