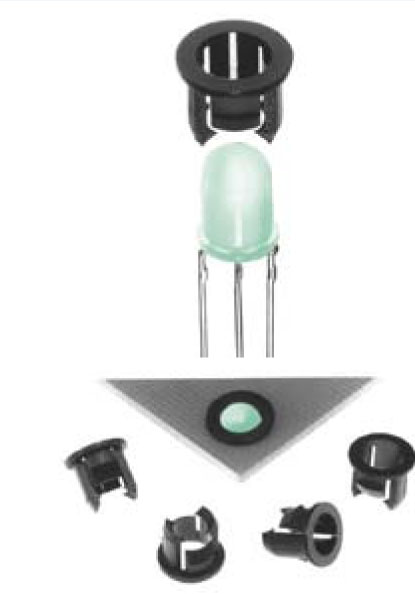

  • "Snap-In" T-1 and T-1 3/4 LED Holders

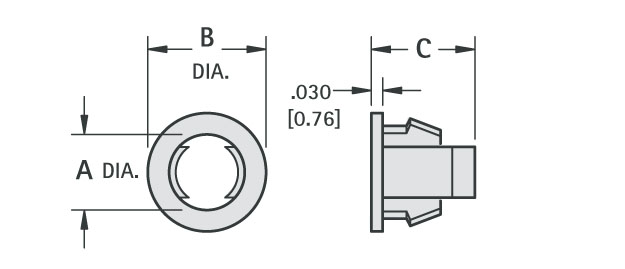

  • "Snap-In" T-1 and T-1 3/4 LED Holders - Schematic Diagram
Designed for use with T-1 or T-1 3/4 LED's in 0.060 (1.52) to 0.070 (1.78) thick panels. The holder snaps into the front panel with easy, light-finger pressure. The LED snaps into the holder from behind the panel and is held securely in place.
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

LED Size

Diameter A

Diameter B

Dimension C

Mounting Hole Size

Finish

N/A T-1 N/A 0.114 in2.9 mm N/A 0.232 in5.9 mm N/A 0.188 in4.8 mm N/A 0.171 in4.3 mm N/A Black
N/A T-1 3/4 N/A 0.200 in5.0 mm N/A 0.315 in8.0 mm N/A 0.274 in6.9 mm N/A 0.250 in6.4 mm N/A Black
