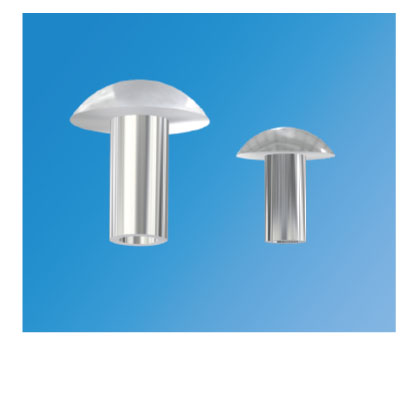

  • Semi-Tubular Rivets

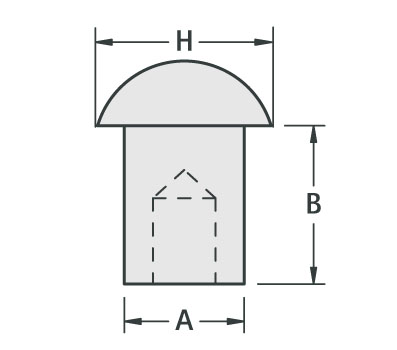

  • Semi-Tubular Rivets - Schematic Diagram
These standardized brass rivets typify the scope and variety of popular rivets that will provide faster and stronger assemblies at lower cost. We suggest you rivet and test a sample before purchasing large quantities for your application.
1 - 11 of 11 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Under Head Length B

Shank Diameter A

Head Diameter H

Mounting Hole Diameter

Material

Finish

N/A Semi-Tubular Rivets N/A 0.125 in3.2 mm N/A 0.060 in1.55 mm N/A 0.109 in2.8 mm N/A 0.067 in1.7 mm N/A Brass N/A Nickel
N/A Semi-Tubular Rivets N/A 0.156 in3.9 mm N/A 0.060 in1.55 mm N/A 0.109 in2.8 mm N/A 0.067 in1.7 mm N/A Brass N/A Nickel
N/A Semi-Tubular Rivets N/A 0.187 in4.8 mm N/A 0.060 in1.55 mm N/A 0.109 in2.8 mm N/A 0.067 in1.7 mm N/A Brass N/A Nickel
N/A Semi-Tubular Rivets N/A 0.156 in3.9 mm N/A 0.087 in2.21 mm N/A 0.147 in3.7 mm N/A 0.093 in2.36 mm N/A Brass N/A Nickel
N/A Semi-Tubular Rivets N/A 0.187 in4.8 mm N/A 0.087 in2.21 mm N/A 0.147 in3.7 mm N/A 0.093 in2.36 mm N/A Brass N/A Nickel
N/A Semi-Tubular Rivets N/A 0.218 in5.5 mm N/A 0.087 in2.21 mm N/A 0.147 in3.7 mm N/A 0.093 in2.36 mm N/A Brass N/A Nickel
N/A Semi-Tubular Rivets N/A 0.250 in6.4 mm N/A 0.087 in2.21 mm N/A 0.147 in3.7 mm N/A 0.093 in2.36 mm N/A Brass N/A Nickel
N/A Semi-Tubular Rivets N/A 0.156 in3.9 mm N/A 0.120 in3.06 mm N/A 0.218 in5.5 mm N/A 0.128 in3.25 mm N/A Brass N/A Nickel
N/A Semi-Tubular Rivets N/A 0.187 in4.8 mm N/A 0.120 in3.06 mm N/A 0.218 in5.5 mm N/A 0.128 in3.25 mm N/A Brass N/A Nickel
N/A Semi-Tubular Rivets N/A 0.218 in5.5 mm N/A 0.120 in3.06 mm N/A 0.218 in5.5 mm N/A 0.128 in3.25 mm N/A Brass N/A Nickel
N/A Semi-Tubular Rivets N/A 0.250 in6.4 mm N/A 0.120 in3.06 mm N/A 0.218 in5.5 mm N/A 0.128 in3.25 mm N/A Brass N/A Nickel
