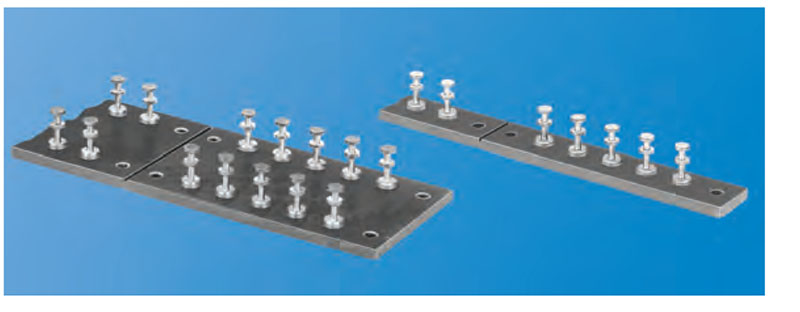

Scored Turret Terminal Boards On Keystone Electronics Corp.

COMPANY HEADER

Cut your production cost by eliminating the tooling and setup charge usually applied to non-standardized boards. Terminals are securely staked and tinned for easy soldering.

1 - 25 of 114 | Results Per Page | View | Unit of Measure

1 2 3 4 5

Request Information Compare Items

Item #	Item Name	Dimension S	Dimension W	Number of Terminal	Terminal Number

15031	N/A Standard Scored Turret Terminal Board	N/A Single Row	N/A 0.500 in12.7 mm	N/A 25	N/A 1503
15231	N/A Standard Scored Turret Terminal Board	N/A Single Row	N/A 0.500 in12.7 mm	N/A 25	N/A 1503
15032	N/A Standard Scored Turret Terminal Board	N/A 1.000 in25.4 mm	N/A 1.500 in38.1 mm	N/A 50	N/A 1503
15232	N/A Standard Scored Turret Terminal Board	N/A 1.000 in25.4 mm	N/A 1.500 in38.1 mm	N/A 50	N/A 1503
15036	N/A Standard Scored Turret Terminal Board	N/A 1.187 in30.1 mm	N/A 1.500 in38.1 mm	N/A 50	N/A 1503
15236	N/A Standard Scored Turret Terminal Board	N/A 1.187 in30.1 mm	N/A 1.500 in38.1 mm	N/A 50	N/A 1503
15033	N/A Standard Scored Turret Terminal Board	N/A 1.500 in38.1 mm	N/A 2.000 in50.8 mm	N/A 50	N/A 1503
15233	N/A Standard Scored Turret Terminal Board	N/A 1.500 in38.1 mm	N/A 2.000 in50.8 mm	N/A 50	N/A 1503
15034	N/A Standard Scored Turret Terminal Board	N/A 2.000 in50.8 mm	N/A 2.500 in63.5 mm	N/A 50	N/A 1503
15234	N/A Standard Scored Turret Terminal Board	N/A 2.000 in50.8 mm	N/A 2.500 in63.5 mm	N/A 50	N/A 1503
15035	N/A Standard Scored Turret Terminal Board	N/A 2.500 in63.5 mm	N/A 3.000 in76.2 mm	N/A 50	N/A 1503
15235	N/A Standard Scored Turret Terminal Board	N/A 2.500 in63.5 mm	N/A 3.000 in76.2 mm	N/A 50	N/A 1503
15091	N/A Standard Scored Turret Terminal Board	N/A Single Row	N/A 0.500 in12.7 mm	N/A 25	N/A 1509 (Hole Thru)
15291	N/A Standard Scored Turret Terminal Board	N/A Single Row	N/A 0.500 in12.7 mm	N/A 25	N/A 1509 (Hole Thru)
15092	N/A Standard Scored Turret Terminal Board	N/A 1.000 in25.4 mm	N/A 1.500 in38.1 mm	N/A 50	N/A 1509 (Hole Thru)
15292	N/A Standard Scored Turret Terminal Board	N/A 1.000 in25.4 mm	N/A 1.500 in38.1 mm	N/A 50	N/A 1509 (Hole Thru)
15096	N/A Standard Scored Turret Terminal Board	N/A 1.187 in30.1 mm	N/A 1.500 in38.1 mm	N/A 50	N/A 1509 (Hole Thru)
15296	N/A Standard Scored Turret Terminal Board	N/A 1.187 in30.1 mm	N/A 1.500 in38.1 mm	N/A 50	N/A 1509 (Hole Thru)
15093	N/A Standard Scored Turret Terminal Board	N/A 1.500 in38.1 mm	N/A 2.000 in50.8 mm	N/A 50	N/A 1509 (Hole Thru)
15293	N/A Standard Scored Turret Terminal Board	N/A 1.500 in38.1 mm	N/A 2.000 in50.8 mm	N/A 50	N/A 1509 (Hole Thru)
15094	N/A Standard Scored Turret Terminal Board	N/A 2.000 in50.8 mm	N/A 2.500 in63.5 mm	N/A 50	N/A 1509 (Hole Thru)
15294	N/A Standard Scored Turret Terminal Board	N/A 2.000 in50.8 mm	N/A 2.500 in63.5 mm	N/A 50	N/A 1509 (Hole Thru)
15095	N/A Standard Scored Turret Terminal Board	N/A 2.500 in63.5 mm	N/A 3.000 in76.2 mm	N/A 50	N/A 1509 (Hole Thru)
15295	N/A Standard Scored Turret Terminal Board	N/A 2.500 in63.5 mm	N/A 3.000 in76.2 mm	N/A 50	N/A 1509 (Hole Thru)
15071	N/A Standard Scored Turret Terminal Board	N/A Single Row	N/A 0.500 in12.7 mm	N/A 25	N/A 1507 (Hole Thru)
