Rivet Mount Quick-Fit Terminals On Keystone Electronics Corp.

COMPANY HEADER

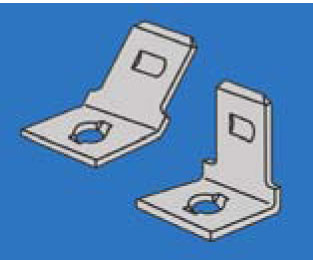

UL recognized bright brass Quick-Fit terminals
Rivet mount male tab versions meet NEMA 2-E201546 & UL 310 specifications
Designed for repeated mating cycles
For tabs 0.110 (2.8 mm) to 0.250 (6.4 mm)

1 - 25 of 32 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items

Item #	Angle (A)	Finish	Tab Size	Material Thickness

2004	N/A 45 º	N/A Bright Brass	N/A 0.110 in2.8 mm	N/A 0.020 in5.1 mm
1271	N/A 45 º	N/A Bright Brass	N/A 0.187 in4.8 mm	N/A 0.020 in5.1 mm
1280	N/A 45 º	N/A Bright Brass	N/A 0.250 in6.4 mm	N/A 0.032 in0.81 mm
2002	N/A 90 º	N/A Bright Brass	N/A 0.110 in2.8 mm	N/A 0.020 in5.1 mm
1261	N/A 90 º	N/A Bright Brass	N/A 0.187 in4.8 mm	N/A 0.020 in5.1 mm
1256	N/A 90 º	N/A Bright Brass	N/A 0.250 in6.4 mm	N/A 0.032 in0.81 mm
1233	N/A 45 º	N/A Matte Tin	N/A 0.110 in2.8 mm	N/A 0.020 in5.1 mm
1234	N/A 45 º	N/A Matte Tin	N/A 0.187 in4.8 mm	N/A 0.020 in5.1 mm
1235	N/A 45 º	N/A Matte Tin	N/A 0.250 in6.4 mm	N/A 0.032 in0.81 mm
1220	N/A 90 º	N/A Matte Tin	N/A 0.110 in2.8 mm	N/A 0.020 in5.1 mm
1221	N/A 90 º	N/A Matte Tin	N/A 0.187 in4.8 mm	N/A 0.020 in5.1 mm
1222	N/A 90 º	N/A Matte Tin	N/A 0.250 in6.4 mm	N/A 0.032 in0.81 mm
2005	N/A 45 º	N/A Bright Brass	N/A 0.110 in2.8 mm	N/A 0.020 in5.1 mm
1263	N/A 45 º	N/A Bright Brass	N/A 0.187 in4.8 mm	N/A 0.020 in5.1 mm
1258	N/A 45 º	N/A Bright Brass	N/A 0.250 in6.4 mm	N/A 0.032 in0.81 mm
2003	N/A 90 º	N/A Bright Brass	N/A 0.110 in2.8 mm	N/A 0.020 in5.1 mm
1262	N/A 90 º	N/A Bright Brass	N/A 0.187 in4.8 mm	N/A 0.020 in5.1 mm
1257	N/A 90 º	N/A Bright Brass	N/A 0.250 in6.4 mm	N/A 0.032 in0.81 mm
1240	N/A 45 º	N/A Matte Tin	N/A 0.110 in2.8 mm	N/A 0.020 in5.1 mm
1241	N/A 45 º	N/A Matte Tin	N/A 0.187 in4.8 mm	N/A 0.020 in5.1 mm
1242	N/A 45 º	N/A Matte Tin	N/A 0.250 in6.4 mm	N/A 0.032 in0.81 mm
1227	N/A 90 º	N/A Matte Tin	N/A 0.110 in2.8 mm	N/A 0.020 in5.1 mm
1228	N/A 90 º	N/A Matte Tin	N/A 0.187 in4.8 mm	N/A 0.020 in5.1 mm
1229	N/A 90 º	N/A Matte Tin	N/A 0.250 in6.4 mm	N/A 0.032 in0.81 mm
1269	N/A 0 º	N/A	N/A 0.110 in2.8 mm	N/A 0.020 in5.1 mm
