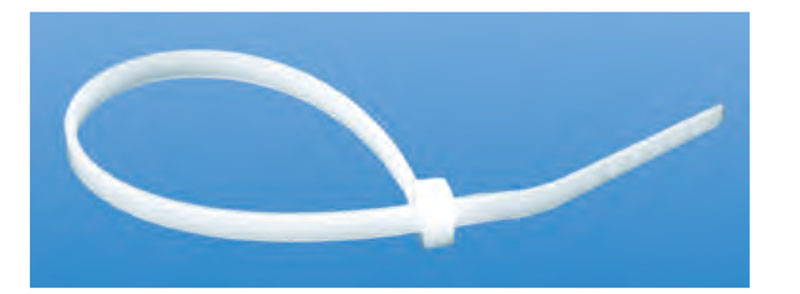

  • Nylon Cable Ties

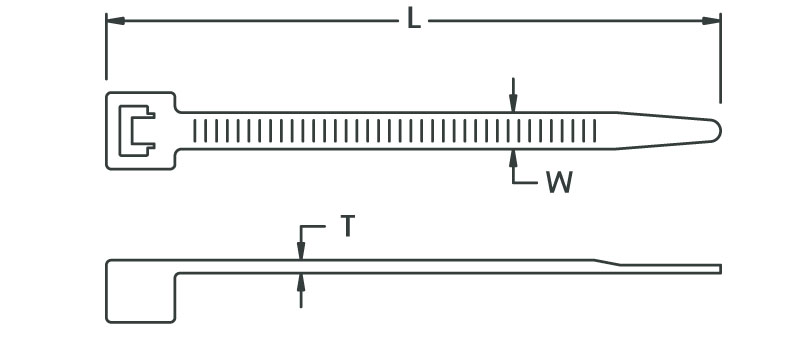

  • Nylon Cable Ties - Schematic Diagram
Popular sizes and strengths to meet common cable tie requirements. Injection molded with one piece construction for strength and reliability. Easily installed by hand. Optional installation tool available, tightens and flush cuts cable tie.
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Minimum Bundle Tensile Strength

Maximum Diameter for Bundle

Approximate Length L

Approximate Width W

Approximate Thickness T

N/A 18 lb N/A 1.000 in25.4 mm N/A 4.250 in108.0 mm N/A 0.100 in2.54 mm N/A 0.045 in1.14 mm
N/A 18 lb N/A 2.000 in50.8 mm N/A 8.000 in203.2 mm N/A 0.100 in2.54 mm N/A 0.045 in1.14 mm
N/A 40 lb N/A 1.250 in31.8 mm N/A 6.000 in152.4 mm N/A 0.140 in3.56 mm N/A 0.050 in1.27 mm
N/A 50 lb N/A 1.750 in44.5 mm N/A 7.500 in190.5 mm N/A 0.190 in4.83 mm N/A 0.055 in1.40 mm
N/A 120 lb N/A 4.000 in101.6 mm N/A 14.500 in368.3 mm N/A 0.190 in4.83 mm N/A 0.055 in1.40 mm
