  • Mounting Screws For Handles

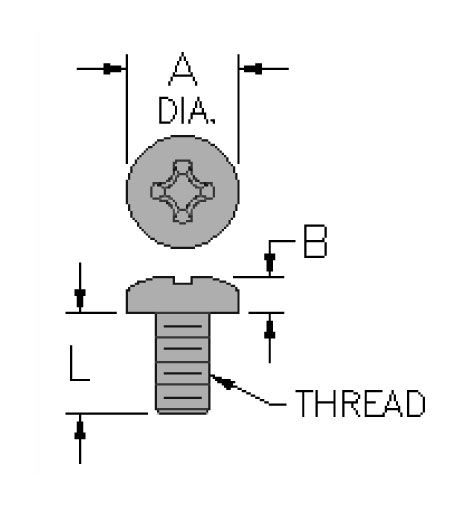

  • Mounting Screws For Handles - Schematic Diagram
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Length (Dimension L)

Diameter (Dimension A)

Dimension B

N/A Pan Head Mounting Screw N/A 0.250 in6.35 mm N/A 0.212 in5.38 mm N/A 0.075 in1.91 mm
N/A Pan Head Mounting Screw N/A 0.375 in9.53 mm N/A 0.212 in5.38 mm N/A 0.075 in1.91 mm
N/A Pan Head Mounting Screw N/A 0.500 in12.70 mm N/A 0.212 in5.38 mm N/A 0.075 in1.91 mm
N/A Pan Head Mounting Screw N/A 0.250 in6.35 mm N/A 0.263 in6.68 mm N/A 0.092 in2.34 mm
N/A Pan Head Mounting Screw N/A 0.375 in9.53 mm N/A 0.263 in6.68 mm N/A 0.092 in2.34 mm
N/A Pan Head Mounting Screw N/A 0.500 in12.70 mm N/A 0.263 in6.68 mm N/A 0.092 in2.34 mm
N/A Pan Head Mounting Screw N/A 0.375 in9.53 mm N/A 0.314 in7.98 mm N/A 0.110 in2.79 mm
N/A Pan Head Mounting Screw N/A 0.500 in12.70 mm N/A 0.314 in7.98 mm N/A 0.110 in2.79 mm
N/A Pan Head Mounting Screw N/A 0.750 in19.05 mm N/A 0.314 in7.98 mm N/A 0.110 in2.79 mm
N/A Pan Head Mounting Screw N/A 0.375 in9.53 mm N/A 0.365 in9.27 mm N/A 0.128 in3.25 mm
N/A Pan Head Mounting Screw N/A 0.500 in12.70 mm N/A 0.365 in9.27 mm N/A 0.128 in3.25 mm
N/A Pan Head Mounting Screw N/A 0.750 in19.05 mm N/A 0.365 in9.27 mm N/A 0.128 in3.25 mm
