These precision stamped mica insulators provide good thermal conductivity: 0.009 watts per square inch per degree celsius per inch in thickness.
Excellent thermal resistance 1100 ºF (593 ºC) Dielectric constant of 7 at 1000 KHz.
Unit of Measure

Specifications

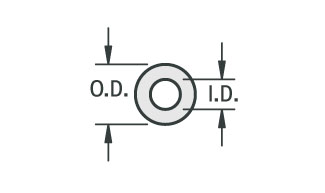

Inside Diameter

 N/A 0.260 in6.6 mm

Outside Diameter

 N/A 0.750 in19.0 mm

Screw Size

 N/A 1/4

Thermal Resistance Temperature

 N/A 1100 ºF593 ºC

Dielectric Constant at 1000 kHz

 N/A 7

Material Thickness

 N/A 0.003 in0.08 mm

Material Thickness Tolerance

 N/A ±0.001 in±0.02 mm

Certification

 N/A ISO 9001 RoHS Compliant

Material

 N/A Thick Mica

Features

N/A

  • Rapid Heat Dissipation
  • High Dielectric Strength
  • Low Cost
