These precision stamped mica insulators provide good thermal conductivity: 0.009 watts per square inch per degree celsius per inch in thickness.
Excellent thermal resistance 1100 ºF (593 ºC) Dielectric constant of 7 at 1000 KHz.
Unit of Measure

Specifications

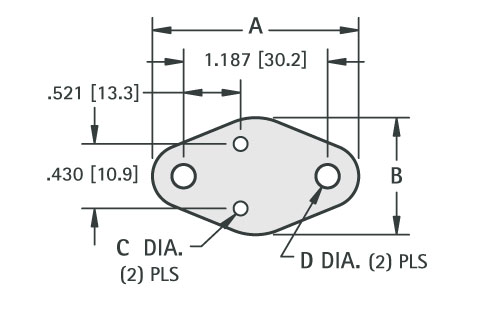

Dimension A

 N/A 1.655 in42.1 mm

Dimension B

 N/A 1.063 in27.0 mm

Dimension C

 N/A 0.270 in6.9 mm

Dimension D

 N/A 0.166 in4.2 mm

Thermal Resistance Temperature

 N/A 1100 ºF593 ºC

Dielectric Constant at 1000 kHz

 N/A 7

Material Thickness

 N/A 0.003 in0.08 mm

Material Thickness Tolerance

 N/A ±0.001 in±0.02 mm

Certification

 N/A ISO 9001 RoHS Compliant

Material

 N/A Thick Mica

Features

N/A

  • Rapid Heat Dissipation
  • High Dielectric Strength
  • Low Cost
