  • Polarity clearly marked (+)
  • Compatible with vacuum and mechanical pick & place assembly systems
  • Low profile for high density packaging
  • Rugged construction, light weight
  • SMT solder tail with "Flow-Hole" design for increased joint strength
  • Viewable solder tails assures reliable joint inspection
  • Safe for all soldering & reflow operations
  • High Temperature Base
Unit of Measure

Specifications

Plate Material

 N/A Tin-Nickel

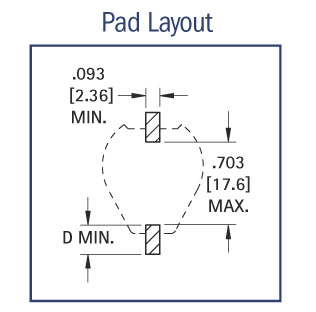

Pad Size D

 N/A 0.278 in7.1 mm

Height H

 N/A 0.290 in7.4 mm

Number of Cells

 N/A (1) Cell (Any 20 mm) (2) 2012 (2) 2016

Battery Reference

 N/A CR2012 CL2016 CR2032 BR2020 DL2032

Contact Material

 N/A Steel

Contact Material Thickness

 N/A 0.015 in0.38 mm

Base Material

 N/A Nylon 46

Operating Temperature Range

 N/A -60 to +293 ºF-50 to +145 ºC

Certification

 N/A UL Rated 94V-0 ISO 9001 RoHS Compliant

Package Type

 N/A Bulk

Advantage

N/A

  • Reliable spring tension assures low contact resistance
  • Retains battery securely to withstand shock and vibration
  • All conductive polystyrene carrier tape meets ANSI/EIA - 481 standard
  • Base material UL Rated 94V-0. Impervious to most industrial solvents
  • Operating temperature range: 60 ºF to +293 ºF (-50 ºC to +145 ºC)

Application

N/A

  • Computer memory, power transfer and back-up systems
  • Video and telecommunications power back-up
  • Microprocessors and Microcomputer memory hold (desktop and laptop applications)
  • Industrial and commercial security and alarm systems
  • Communications power sources
  • PC/104 applications
