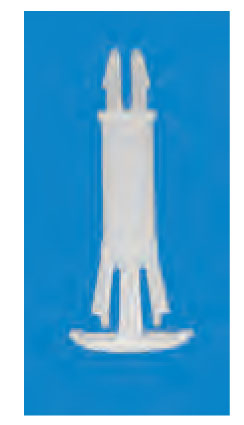

  • End permanently attaches to 0.062 (1.57) PC board
  • Small footprint frees up PC board space
  • Permanently attaches to 0.059 (1.51) - 0.065 (1.65) thick case from outside
  • Provides flat clean cosmetic appearance
  • Ideal for low clearance applications or for mounting directly to case walls
Unit of Measure

Specifications

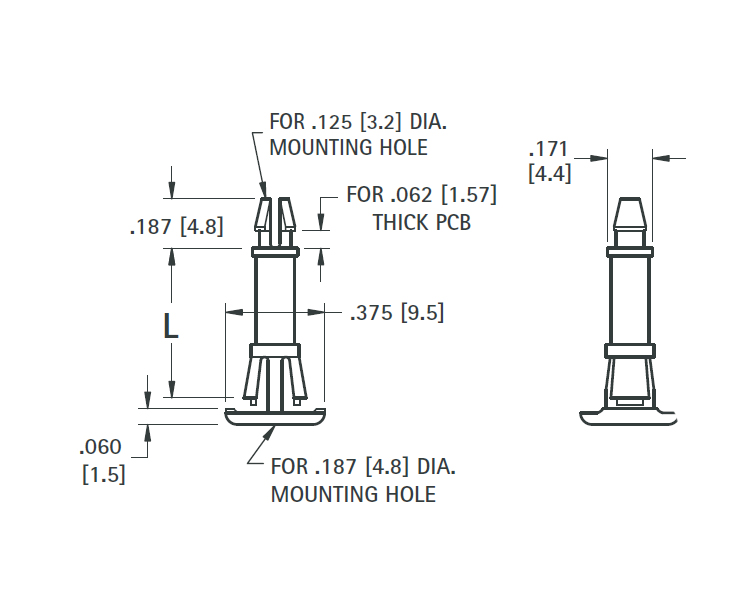

Length L

 N/A 0.500 in12.7 mm

PC Board Thickness

 N/A 0.062 in1.57 mm

Mounting Hole Diameter

 N/A 0.125 in0.187 in4.8 mm3.2 mm

Material

 N/A Nylon 6/6

Rating

 N/A UL Rated 94V-0

Certification

 N/A ISO 9001 RoHS Compliant
