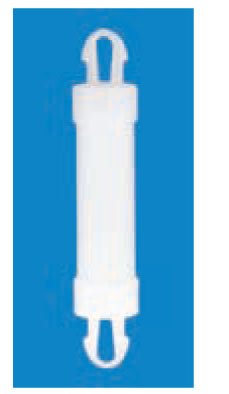

  • Both ends permanently attach to chassis and board
  • Teardrop style mounting end eases assembly
  • Low protrusion above board and under chassis
  • Slim design frees up board space
  • Designed for 0.062 (1.57) thick boards
  • One pieces design eliminates the need for additional screws and nuts
Unit of Measure

Specifications

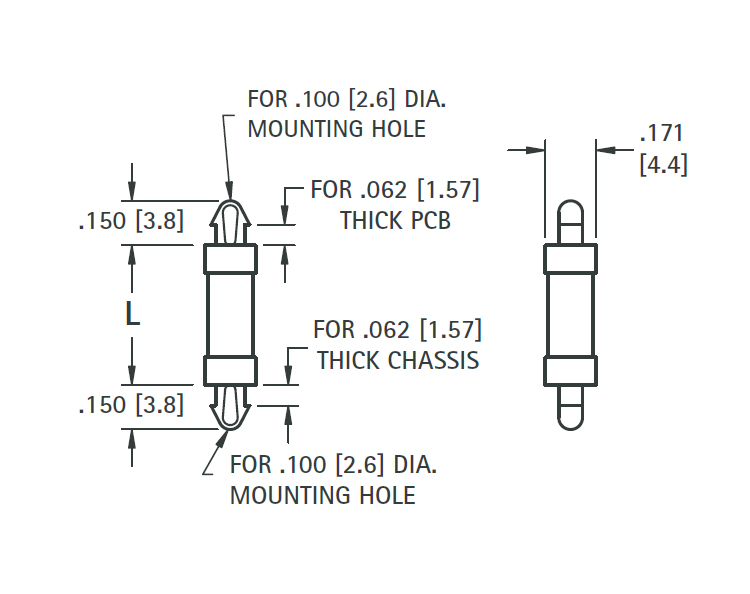

Length L

 N/A 0.500 in12.7 mm

PC Board Thickness

 N/A 0.062 in1.57 mm

Mounting Hole Diameter

 N/A 0.100 in2.6 mm

Material

 N/A Nylon 6/6

Rating

 N/A UL Rated 94V-0

Certification

 N/A ISO 9001 RoHS Compliant
