  • One end permanently attaches to chassis
  • Other end secures board with tension fit.
  • Board easily releasable for repairs or upgrades
  • Slim design frees up board space
  • Designed for 0.062 (1.57) thick boards
  • One pieces design eliminates the need for additional screws and nuts
Unit of Measure

Specifications

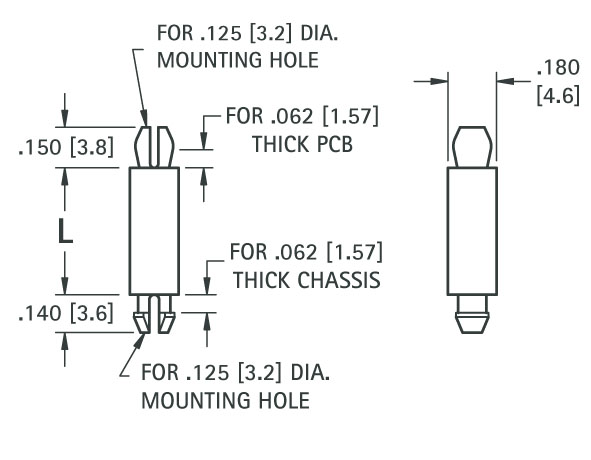

Length L

 N/A 1.000 in25.4 mm

PC Board Thickness

 N/A 0.062 in1.57 mm

Mounting Hole Diameter

 N/A 0.125 in3.2 mm

Material

 N/A Nylon 6/6

Rating

 N/A UL Rated 94V-0

Certification

 N/A ISO 9001 RoHS Compliant
