  • Locks onto 0.062 (1.57) thick PC board
  • Board is positively locked until manually released
  • Board is easily releasable for repairs or upgrades
  • Sturdy support due to high contact area with chassis
  • Fits snug onto board
  • Accommodates varying board thicknesses
  • Flame retardant
  • One pieces design eliminates the need for additional screws and nuts
Unit of Measure

Specifications

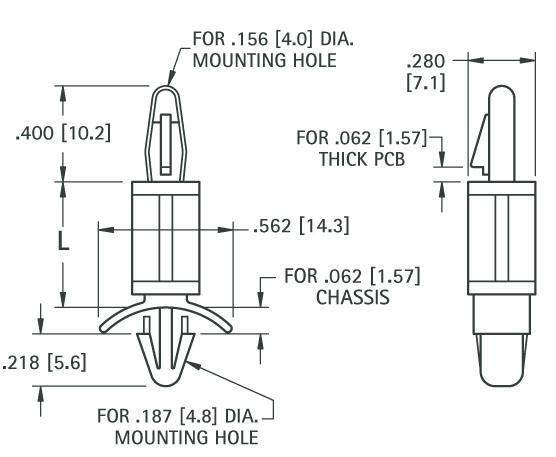

Length L

 N/A 0.187 in4.7 mm

PC Board Thickness

 N/A 0.062 in1.57 mm

Mounting Hole Diameter

 N/A 0.156 in0.187 in4.8 mm4.0 mm

Material

 N/A Nylon 6/6

Rating

 N/A UL Rated 94V-0

Certification

 N/A ISO 9001 RoHS Compliant
