Unit of Measure

Specifications

Mount Type

 N/A Surface

Cell Type

 N/A Single

Operating Temperature

 N/A -60 to +290 ºF-50 to +145 ºC

Base Material

 N/A Nylon 46

Base Rating

 N/A UL 94V-0

Contact Material

 N/A Phosphor Bronze

Contact Plating

 N/A Gold (Flash)

Contact Material Thickness

 N/A 0.012 in0.30 mm

Certification

 N/A ISO 9001 RoHS Compliant

Features

N/A

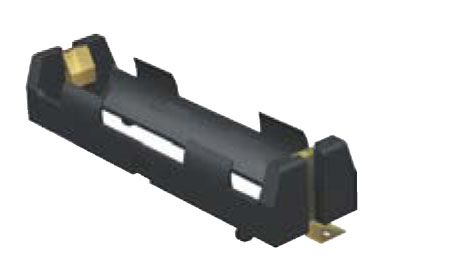

  • Low profile surface mount holder for Cylindrical Lithium and alkaline batteries
  • UL 94V-0 heat resistant nylon housing well suited for reflow soldering
  • Battery installation and removal does not require tools
  • Securely holds battery in place
  • Polarity clearly marked for orientation
  • Accommodates cells with or without built-in PCB protection circuits
  • Base Feature: High temperature

Application

N/A

  • Computer memory, power backup systems
  • Digital readers
  • Laptop and touch pad computers
  • PLC and industrial controls

Note

N/A PC Mount Battery Clip Available
