Unit of Measure

Specifications

Color

 N/A Blue

Body Material

 N/A Molded Nylon

Body Material Standards

 N/A ASTM D4066

Shell Material

 N/A Brass

Shell Finish

 N/A Nickel

Contact Material

 N/A Phosphor Bronze

Contact Finish

 N/A Silver

Current Rating

 N/A 10 A

Breakdown Voltage (RMS)

 N/A 5700 V

Capacitance

 N/A 3.8 pF

Certification

 N/A ISO 9001 RoHS Compliant

Features

N/A Accepts 0.080 (2.0) Tip

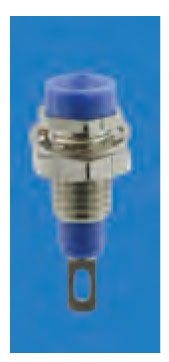

Molded Nylon body with metal jacket. Contact is formed from phosphor bronze contact with solder hole for ease in attaching wire. Designed for positive contact, easy insertion and withdrawal. Supplied with nut.
