Unit of Measure

Specifications

Base Material/Retainer Cover Material

 N/A Nylon 46

Rating

 N/A UL 94V-0

Contact Material

 N/A Phosphor Bronze

Contact Plating

 N/A Tin-Nickel

Contact Material Thickness

 N/A 0.012 in0.30 mm

Operating Temperature

 N/A -60 to +290 ºF-50 to +145 ºC

Finish

 N/A Tin Plate

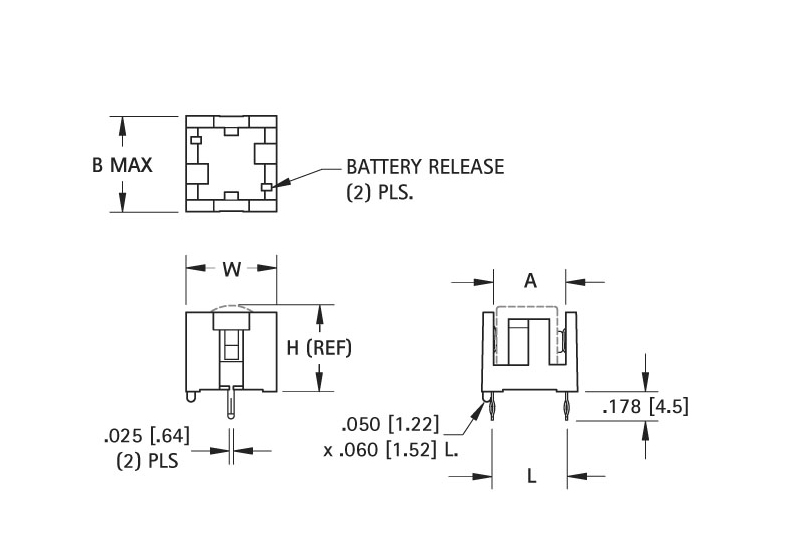

Dimension L

 N/A 0.450 in11.4 mm

Dimension W

 N/A 0.540 in13.7 mm

Reference Dimension H

 N/A 0.506 in12.9 mm

Dimension A

 N/A 0.430 in10.9 mm

Maximum Dimension B

 N/A 0.570 in14.5 mm

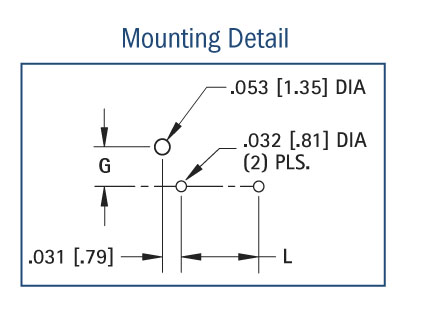

Dimension G

 N/A 0.240 in6.1 mm

Cell Size

 N/A 1/3 N

Mounting Style

 N/A Thru Hole Mount (THM)

Certification

 N/A ISO 9001 RoHS Compliant

Features

N/A

  • Snap-In PC contact holds firmly in position for wave soldering
  • Tin Nickel Plated contacts for excellent solder ability and durability
  • Polarity clearly marked for orientation
  • Snap-on retainer cover (optional) retains battery securely to withstand shock and vibration. Helps protect against shorting. Tamper-proof.
  • Base Feature: High temperature

Application

N/A

  • Computer memory, power backup systems.
  • Telecommunications
  • Residential, industrial and commercial security systems
  • PLC and industrial controls
