Unit of Measure

Specifications

Cover

 N/A 108C

Base Material/Retainer Cover Material

 N/A Polybutylene Terephthalate (PBT)

Rating

 N/A UL 94V-0

Contact Material

 N/A Stainless Steel

Contact Plating

 N/A Tin-Nickel

Contact Material Thickness

 N/A 0.012 in0.30 mm

Operating Temperature

 N/A -60 to +290 ºF-50 to +145 ºC

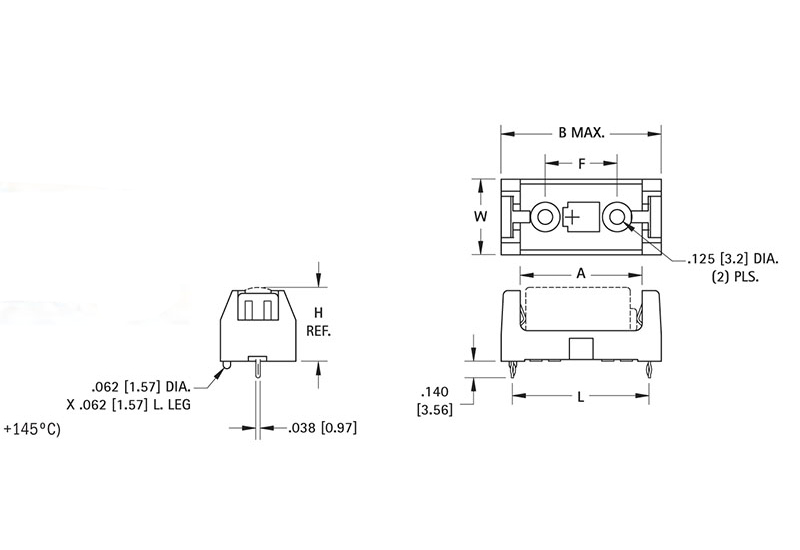

Dimension L

 N/A 1.160 in29.5 mm

Dimension W

 N/A 0.640 in16.3 mm

Reference Dimension H

 N/A 0.633 in16.1 mm

Dimension A

 N/A 1.030 in26.2 mm

Maximum Dimension B

 N/A 1.360 in34.5 mm

Dimension F

 N/A 0.610 in15.5 mm

Dimension G

 N/A 0.279 in7.1 mm

Cell Size

 N/A 1/2 AA CR2

Mounting Style

 N/A Thru Hole Mount (THM)

Certification

 N/A ISO 9001 RoHS Compliant

Features

N/A

  • Snap-In PC contact holds firmly in position for wave soldering
  • Tin Nickel Plated contacts for excellent solderability and durability
  • Polarity clearly marked for orientation

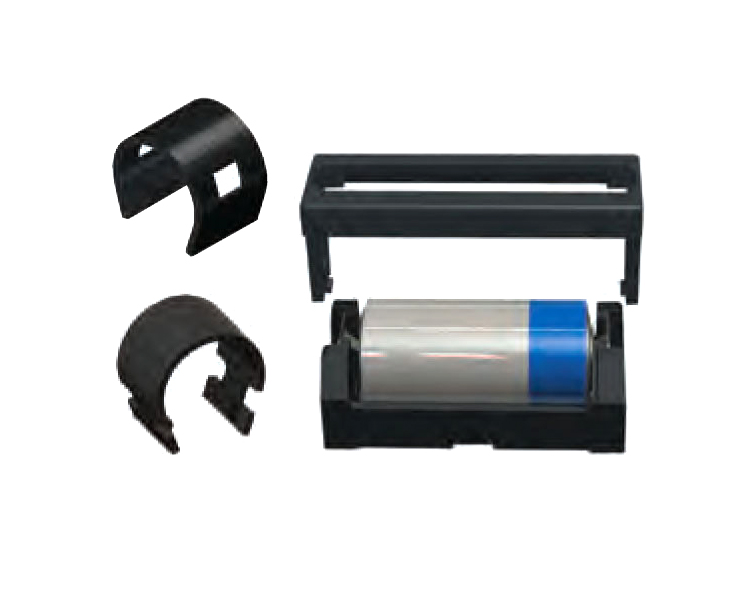

  • Snap-on retainer cover (optional) retains battery securely to withstand shock and vibration. Helps protect against shorting. Tamper-proof.

Application

N/A

  • Computer memory, power backup systems.
  • Telecommunications
  • Residential, industrial and commercial security systems
  • PLC and industrial controls
