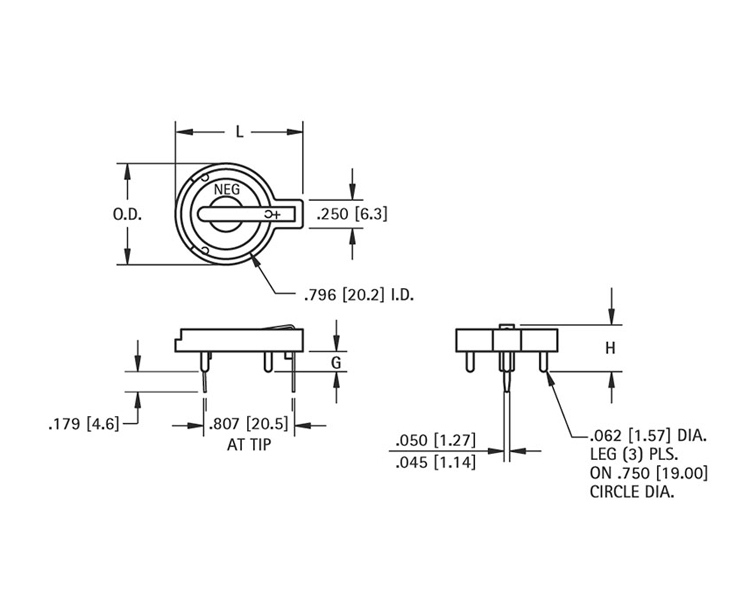

Dimension G |
N/A 0.100 in2.5 mm |
Dimension H |
N/A 0.335 in8.5 mm |
Dimension L |
N/A 1.130 in28.7 mm |
Outside Diameter |
N/A 0.896 in22.8 mm |
Number of Cells |
N/A (1) Cell (Any 20 mm) (2) 2012 (2) 2016 |
Battery Reference |
N/A BR2012 CR2012 CL2016 CL2025 BR2025 CR2032 CL2032 CR2016 DL2020 |
Base Material |
N/A PBT |
Material Thickness |
N/A 0.020 in0.50 mm |
Contact Material |
N/A Spring Steel |
Contact Plating |
N/A Tin-Nickel |
Operating Temperature Range |
N/A -60 to +293 ºF-50 to +145 ºC |
Certification |
N/A UL Rated 94V-0 ISO 9001 RoHS Compliant |
|
