Unit of Measure

Specifications

Base Material

 N/A Nylon 46

Rating

 N/A UL 94V-0

Contact Material

 N/A Phosphor Bronze

Contact Plating

 N/A Gold (Flash)

Contact Material Thickness

 N/A 0.012 in0.30 mm

Operating Temperature

 N/A -60 to +290 ºF-50 to +145 ºC

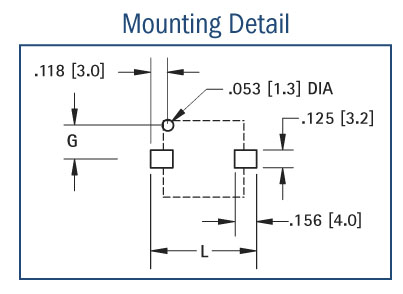

Dimension L

 N/A 0.748 in19.0 mm

Dimension W

 N/A 0.540 in13.7 mm

Reference Dimension H

 N/A 0.506 in12.9 mm

Dimension A

 N/A 0.430 in10.9 mm

Maximum Dimension B

 N/A 0.570 in14.5 mm

Dimension G

 N/A 0.240 in6.1 mm

Cell Size

 N/A 1/3 N

Mounting Style

 N/A Surface Mount (SMT)

Certification

 N/A ISO 9001 RoHS Compliant

Package Type

 N/A Bulk

Tape & Reel Specifications

Width

 N/A 44 mm

Pitch

 N/A 24 mm

Reel Size

 N/A 13 in

Number of Pieces per Reel

 N/A 125

Features

N/A

  • Low profile surface mount holders for Cylindrical Lithium and Alkaline batteries
  • UL 94V-0 Heat resistant Nylon Housings well suited for reflow soldering
  • Designed for vacuum pick and place assembly
  • Gold-plated Phosphor Bronze contacts assure low contact resistance and are readily solderable
  • Ideal for both lead free solder and traditional solder process
  • Battery installation and removal does not require tools
  • Securely holds battery in place
  • Polarity clearly marked for orientation

Application

N/A

  • Computer memory, power backup systems
  • Telecommunications
  • Residential, industrial and commercial security systems
  • PLC and industrial controls
  • Base Feature: High temperature
