Request Information
Unit of Measure

Specifications

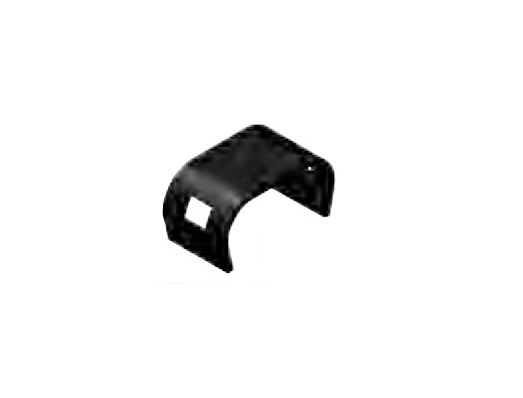

Cover

 N/A 1022C

Base Material

 N/A Nylon 46

Rating

 N/A UL 94V-0

Contact Material

 N/A Phosphor Bronze

Contact Plating

 N/A Gold (Flash)

Contact Material Thickness

 N/A 0.012 in0.30 mm

Operating Temperature

 N/A -60 to +290 ºF-50 to +145 ºC

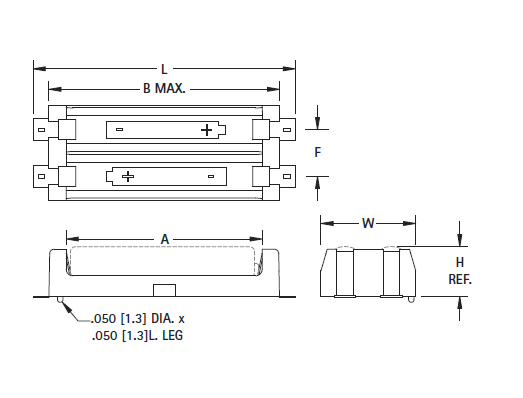

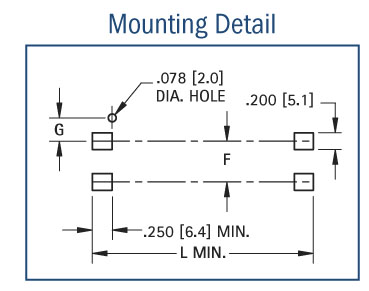

Dimension L

 N/A 2.421 in61.5 mm

Dimension W

 N/A 0.875 in22.2 mm

Reference Dimension H

 N/A 0.445 in11.3 mm

Dimension A

 N/A 1.810 in46.0 mm

Maximum Dimension B

 N/A 2.140 in54.4 mm

Dimension F

 N/A 0.430 in10.9 mm

Dimension G

 N/A 0.182 in4.6 mm

Cell Size

 N/A AAA

Mounting Style

 N/A Surface Mount (SMT)

Certification

 N/A ISO 9001 RoHS Compliant

Package Type

 N/A On Tape & Reel

Tape & Reel Specifications

Width

 N/A 88 mm

Pitch

 N/A 32 mm

Reel Size

 N/A 13 in

Number of Pieces per Reel

 N/A 125

Features

N/A

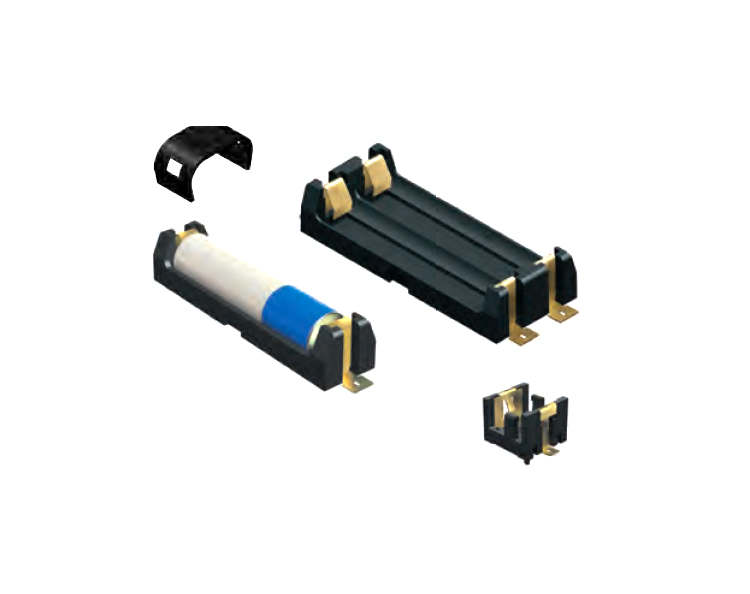

  • Low profile surface mount holders for Cylindrical Lithium and Alkaline batteries
  • UL 94V-0 Heat resistant Nylon Housings well suited for reflow soldering
  • Designed for vacuum pick and place assembly
  • Gold-plated Phosphor Bronze contacts assure low contact resistance and are readily solderable
  • Ideal for both lead free solder and traditional solder process
  • Battery installation and removal does not require tools
  • Securely holds battery in place
  • Polarity clearly marked for orientation

Application

N/A

  • Computer memory, power backup systems
  • Telecommunications
  • Residential, industrial and commercial security systems
  • PLC and industrial controls
  • Base Feature: High temperature

Note

N/A Available on Tape and Reel.
