Unit of Measure

Specifications

Cover

 N/A 1024C

Base Material

 N/A Nylon 46

Rating

 N/A UL 94V-0

Contact Material

 N/A Phosphor Bronze

Contact Plating

 N/A Gold (Flash)

Contact Material Thickness

 N/A 0.012 in0.30 mm

Operating Temperature

 N/A -60 to +290 ºF-50 to +145 ºC

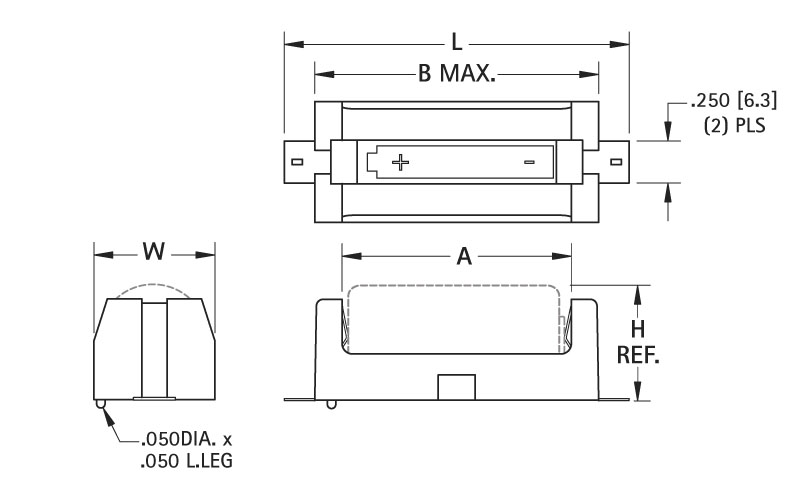

Dimension L

 N/A 1.723 in43.8 mm

Dimension W

 N/A 0.612 in15.5 mm

Reference Dimension H

 N/A 0.603 in15.3 mm

Dimension A

 N/A 1.030 in26.2 mm

Maximum Dimension B

 N/A 1.360 in34.5 mm

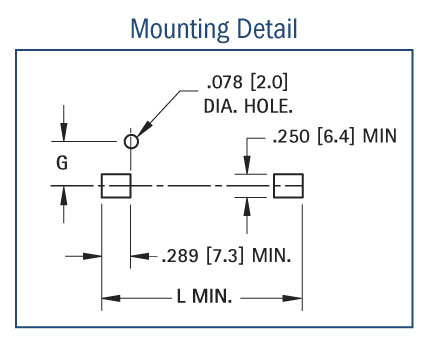

Dimension G

 N/A 0.265 in6.7 mm

Cell Size

 N/A 1/2 AA

Mounting Style

 N/A Surface Mount (SMT)

Certification

 N/A ISO 9001 RoHS Compliant

Package Type

 N/A On Tape & Reel

Tape & Reel Specifications

Width

 N/A 56 mm

Pitch

 N/A 24 mm

Reel Size

 N/A 13 in

Number of Pieces per Reel

 N/A 125

Features

N/A

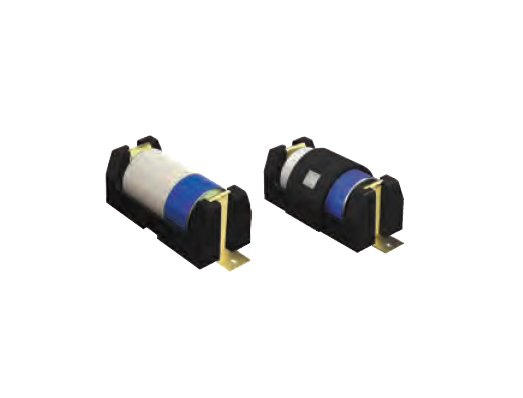

  • Low profile surface mount holders for Cylindrical Lithium and Alkaline batteries
  • UL 94V-0 Heat resistant Nylon Housings well suited for reflow soldering
  • Designed for vacuum pick and place assembly
  • Gold-plated Phosphor Bronze contacts assure low contact resistance and are readily solderable
  • Ideal for both lead free solder and traditional solder process
  • Battery installation and removal does not require tools
  • Securely holds battery in place
  • Polarity clearly marked for orientation

Application

N/A

  • Computer memory, power backup systems
  • Telecommunications
  • Residential, industrial and commercial security systems
  • PLC and industrial controls

Note

N/A Available on Tape and Reel.
