Terminal Material |
N/A EPT Copper |
Insulation |
N/A Vinyl |
End Type |
N/A Male Fully Insulated Nylon |
Width |
N/A 0.187 in4.8 mm |
Thickness |
N/A 0.020 in0.51 mm |

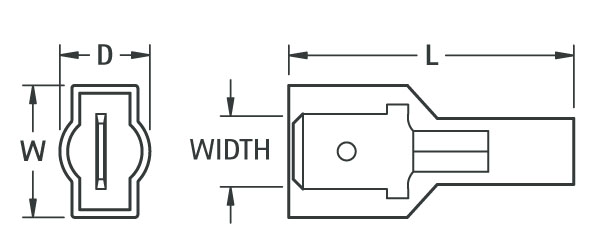

Dimension L |
N/A 0.87 in22.1 mm |
Dimension W |
N/A 0.37 in9.4 mm |
Dimension D |
N/A 0.30 in7.6 mm |
Wire Range |
N/A 22/18 AWG (Red) |
Barrel Length |
N/A 0.24 in6.3 mm |
Barrel Inside Diameter |
N/A 0.080 in2.03 mm |
Maximum Insulation Diameter |
N/A 0.145 in3.7 mm |
Certification |
N/A ISO 9001 RoHS Compliant |
