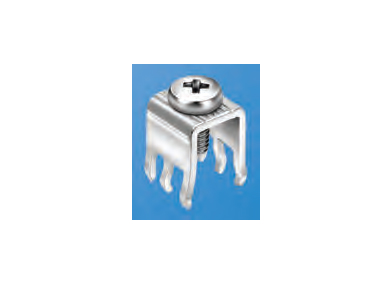

These easy-to-mount, multipurpose screw type terminals are a practical, low-cost alternative to PC screw type edge connectors, barrier blocks, terminal boards and terminal strips. Steadfast and easy to install, will accommodate solid or stranded wire, crimp type terminals or lugs. Multi-placement of these low-profile terminals make them ideally suited for high density packaging. Supplied unassembled or with screw installed and captivated.
Unit of Measure

Specifications

Type

 N/A 30 Amphere Current Vertical Heavy Duty

Current Rating

 N/A 30 A

Terminal Material

 N/A Brass

Terminal Finish

 N/A Matte Tin

Binding Head Screw Material

 N/A Brass

Binding Head Screw Finish

 N/A Nickel

Head Color Available

 N/A Black Blue Green Nickel Red White Yellow

Terminal Size

 N/A 0.032 in0.81 mm

Screw Supplied Unassembled

 N/A 8196

Wire Size

 N/A 14 to 22 AWG

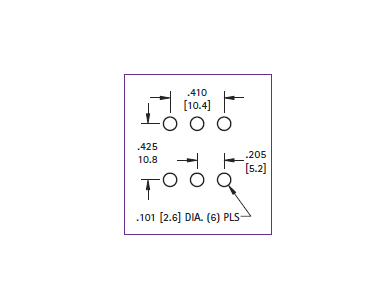

Mounting Hole Diameter

 N/A 0.076 in1.93 mm

Screw Size

 N/A 10-32

Screw Length

 N/A 0.375 in9.5 mm

Certification

 N/A ISO 9001 RoHS Compliant

Principal Features

N/A

  • Compact, heavy duty design
  • Six snap-in legs for total stability
  • Serrated top surface secures connection
  • Combination drive, binding head screw

Note

N/A Color coded screws available.
