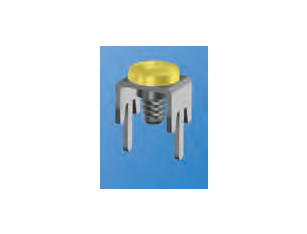

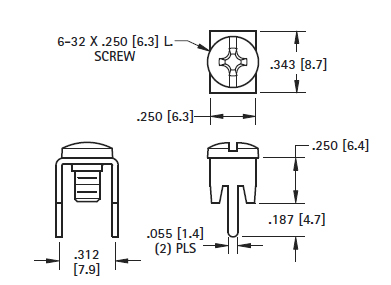

These easy-to-mount, multipurpose screw type terminals are a practical, low-cost alternative to PC screw type edge connectors, barrier blocks, terminal boards and terminal strips. Steadfast and easy to install, will accommodate solid or stranded wire, crimp type terminals or lugs. Multi-placement of these low-profile terminals make them ideally suited for high density packaging. Supplied unassembled or with screw installed and captivated.
Unit of Measure

Specifications

Type

 N/A Low Profile Vertical

Current Rating

 N/A 15 A

Terminal Material

 N/A Brass

Terminal Finish

 N/A Matte Tin

Binding Head Screw Material

 N/A Brass

Binding Head Screw Finish

 N/A Nickel

Head Color Available

 N/A Black Blue Green Nickel Red White Yellow

Terminal Size

 N/A 0.032 in0.81 mm

Screw Supplied Unassembled

 N/A 8198

Screw Installed & Captivated

 N/A 7778

Wire Size

 N/A 14 to 22 AWG

Mounting Hole Diameter

 N/A 0.067 in1.7 mm

Screw Size

 N/A 6-32

Screw Length

 N/A 0.250 in6.3 mm

Certification

 N/A ISO 9001 RoHS Compliant

Principal Features

N/A

  • Low profile
  • Stable, no-rock design with exclusive anti-rotational feature
  • Easily mounts with four legs into pre-drilled or punched holes
  • Accepts 14-22 AWG solid or stranded wire, crimp type terminals or lugs
  • Ideally suited for high-density packaging
  • Available in horizontal or vertical mounting
  • Space-saving and time saving
  • Easy accessibility for PC board testing
  • Binding screw is positioned above board level to avoid wicking during wave soldering
  • Terminals are made of Brass with Tin Plate
  • Supplied with a combination drive 6-32 binding head screw

Note

N/A Color coded screws available.
