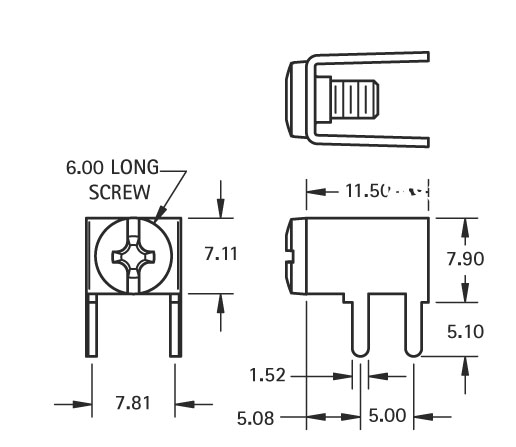

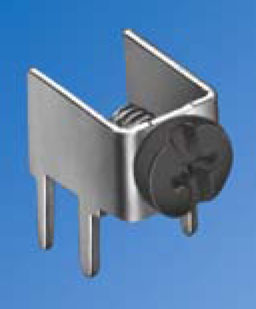

These easy-to-mount, multipurpose screw type terminals are a practical, low-cost alternative to PC screw type edge connectors, barrier blocks, terminal boards and terminal strips. Steadfast and easy to install, will accommodate solid or stranded wire, crimp type terminals or lugs. Multi-placement of these low-profile terminals make them ideally suited for high density packaging. Supplied unassembled or with screw installed and captivated.
Unit of Measure

Specifications

Type

 N/A Horizontal

Mounting

 N/A PC Mount

Current Rating

 N/A 15 A

Terminal Material

 N/A Brass

Terminal Finish

 N/A Matte Tin

Head Color Available

 N/A Black Blue Green Nickel Red White Yellow

Screw Material

 N/A Brass

Screw Finish

 N/A Nickel

Terminal Size

 N/A 0.80 mm

Screw Supplied Unassembled

 N/A 7761

Screw Installed & Captivated

 N/A 7762

Wire Size

 N/A 14 to 22 AWG

Mounting Hole Diameter

 N/A 1.85 mm

Thread Size

 N/A M3

Screw Length

 N/A 6.00 mm

Certification

 N/A ISO 9001 RoHS Compliant

Principal Features

N/A

  • Stable, no-rock design with exclusive anti-rotational feature
  • Easily mounts with four legs into pre-drilled or punched holes
  • Accepts 14-22 AWG solid or stranded wire, crimp type terminals or lugs
  • Ideally suited for high-density packaging
  • Easy accessibility for PC board testing
  • Binding screw is positioned above board level to avoid
  • wicking during wave soldering

Note

N/A Color coded screws available.
