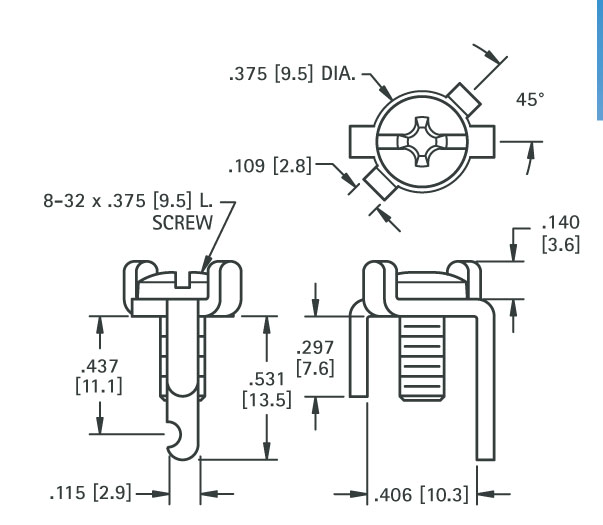

These sturdy, low cost screw terminals, feature an anti-rotation tab for use with spade terminals. They are available with the screw installed and captivated, the screw unassembled or without a screw.
Unit of Measure

Specifications

Type

 N/A 8-32 Screw

Current Rating

 N/A 15 A

Terminal Material

 N/A Brass

Terminal Finish

 N/A Matte Tin

Head Color Available

 N/A Black Blue Green Nickel Red White Yellow

Screw Material

 N/A Brass

Screw Finish

 N/A Nickel

Terminal Size

 N/A 0.064 in1.6 mm

Screw Supplied Unassembled

 N/A 1207

Screw Installed & Captivated

 N/A 1209

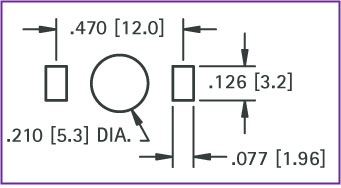

Mounting Hole Diameter

 N/A 0.210 in5.3 mm

Screw Size

 N/A 8-32

Screw Length

 N/A 0.375 in9.5 mm

Certification

 N/A ISO 9001 RoHS Compliant

Principal Features

N/A

  • Easy to connect using solid or stranded wire, crimp lugs or terminals
  • Anti-rotation tab for use with spade terminals
  • Supplied with screw installed and captivated, with screw unassembled, or without screw
  • Stainless steel screw will not wick
