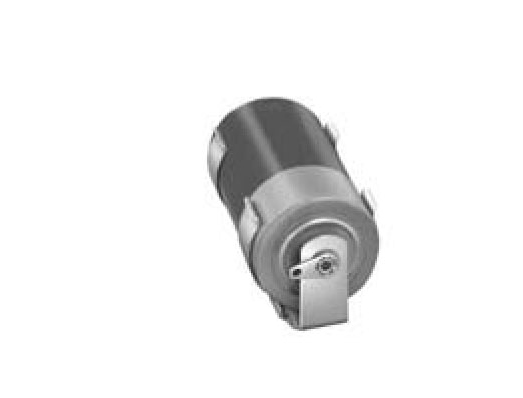

An established design that has gained wide acceptance for commercial and military applications. Batteries are held under constant spring tension assuring low contact resistance. Retainer clips are available to lock batteries in place and prevent shifting or loosening. Recommended for use where shock or severe vibration is encountered. Special fabrication for more than four batteries or variations from standard stock parts can be assembled to meet your requirements.
Unit of Measure

Specifications

Holds Number of Cells

 N/A 1

Base Width W

 N/A 0.687 in17.4 mm

Base Length L

 N/A 2.125 in54.0 mm

Holder Height H

 N/A 0.656 in16.7 mm

Height to Battery Center C

 N/A 0.437 in11.1 mm

Mounting Holes CTR to CTR

 N/A 1.343 in34.1 mm

Cell Type

 N/A AA

Series

 N/A 1100

Insulated Contact

 N/A One

Certification

 N/A ISO 9001 RoHS Compliant

Modification

 N/A We welcome the opportunity to quote on variations of standard items. Use our engineering service for your custom-built holders. Holders with PC and Quick-Fit terminals available on special order.

Material

Clip Material

 N/A Spring Steel

Clip Plating

 N/A Nickel

Contact Eyelet Material

 N/A Brass

Contact Eyelet Plating

 N/A Nickel

Insulating Washers Material

 N/A Fiber

Insulating Washers Material Type

 N/A Resin Impregnated

Solder Lugs Material

 N/A Brass

Solder Lug Plating

 N/A Tin

Phenolic Base Type

 N/A PBE

Phenolic Base Rating

 N/A MIL-P-3115C

Stainless Steel Base

 N/A Ribbed, for Added Support

Steel Base Material

 N/A Spring Steel

Steel Base Plating

 N/A Nickel

Additional Information

N/A

  • Ideal for NiCd, Alkaline, NiMH, Carbon, Zinc and Lithium Cells
  • Corrosion Resistant, Nickel Plate
  • Brass Contacts, Nickel Plate
  • Moisture Proof Resin Impregnated, Fiber Insulating Washers

Note

N/A Insulator tube Supplied
