Clip Material |
N/A Spring Steel |
Clip Finish |
N/A Nickel Plate |
Contact Eyelets Material |
N/A Brass |
Contact Eyelets Finish |
N/A Nickel Plate |
Insulating Washers |
N/A Moisture Proof Resin Impregnated Fibre |
Solder Lugs Material |
N/A Brass |
Solder Lugs Finish |
N/A Tin Plate |
Contact Type |
N/A Non-Insulated |

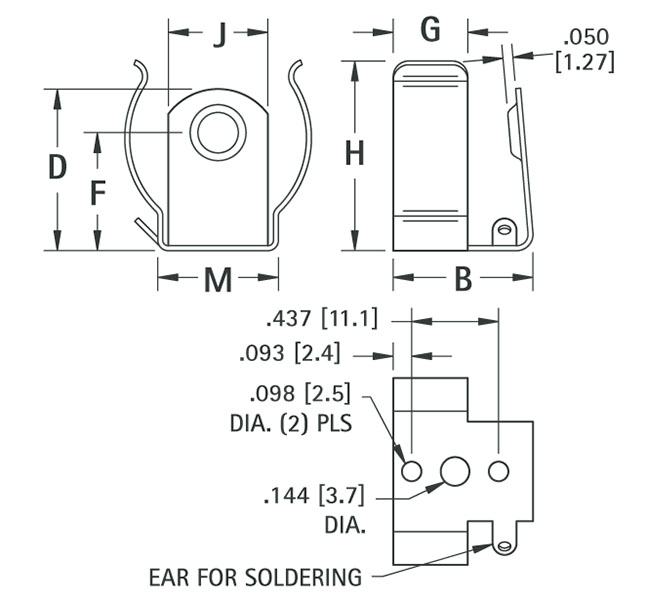

Dimension B |
N/A 0.703 in17.9 mm |
Dimension D |
N/A 0.609 in15.5 mm |
Dimension F |
N/A 0.375 in9.5 mm |
Dimension G |
N/A 0.375 in9.5 mm |
Dimension H |
N/A 0.609 in15.5 mm |
Dimension J |
N/A 0.312 in7.9 mm |
Dimension M |
N/A 0.353 in9 mm |
Steel Thickness |
N/A 0.015 in0.39 mm |
Minimum Battery Diameter |
N/A 0.531 to .650 in |
Maximum Battery Diameter |
N/A 13.5 to 16.5 mm |
Battery Size |
N/A AA |
Certification |
N/A ISO 9001 RoHS Compliant |
