Clip Material |
N/A Spring Steel |
Clip Finish |
N/A Nickel Plate |
Contact Eyelets Material |
N/A Brass |
Contact Eyelets Finish |
N/A Nickel Plate |
Insulating Washers |
N/A Moisture Proof Resin Impregnated Fibre |
Solder Lugs Material |
N/A Brass |
Solder Lugs Finish |
N/A Tin Plate |
Contact Type |
N/A Insulated |

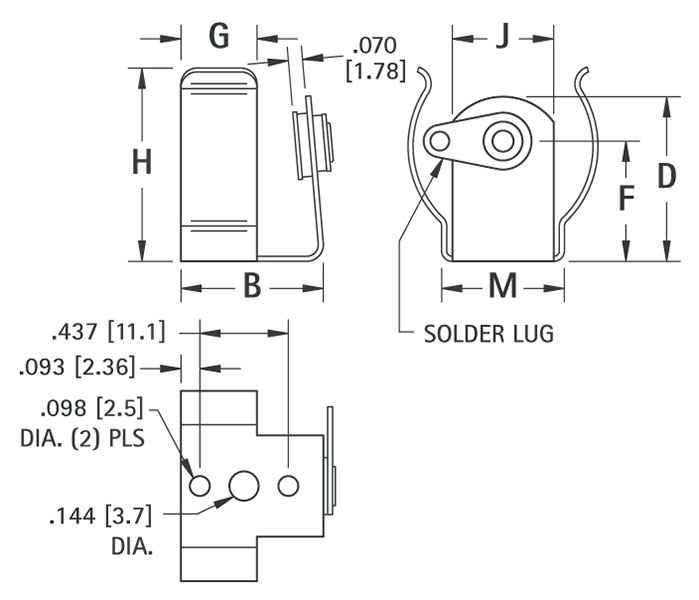

Dimension B |
N/A 0.703 in17.9 mm |
Dimension D |
N/A 0.812 in20.6 mm |
Dimension F |
N/A 0.593 in15.1 mm |
Dimension G |
N/A 0.375 in9.5 mm |
Dimension H |
N/A 0.937 in23.8 mm |
Dimension J |
N/A 0.500 in12.7 mm |
Dimension M |
N/A 0.605 in15.4 mm |
Steel Thickness |
N/A 0.020 in0.51 mm |
Minimum Battery Diameter |
N/A 0.875 to 1.125 in |
Maximum Battery Diameter |
N/A 22.2 to 28.6 mm |
Battery Size |
N/A C |
Certification |
N/A ISO 9001 RoHS Compliant |
