Holds Number of Cells |
N/A 6 |

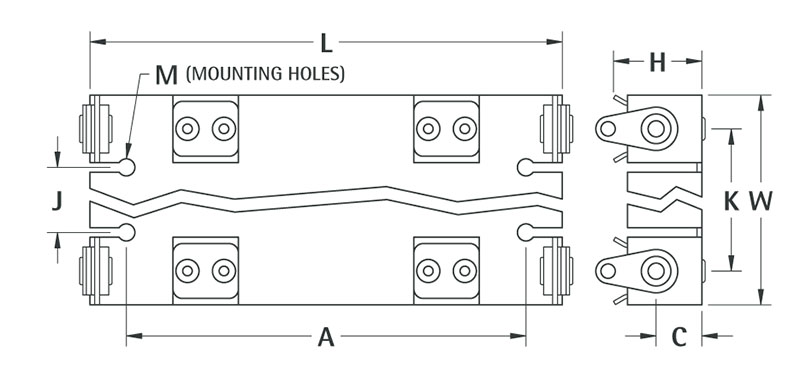

Base Width W |
N/A 3.375 in85.7 mm |
Base Length L |
N/A 4.920 in125.0 mm |
Base Height H |
N/A 1.262 in32.1 mm |
Height to Battery Center C |
N/A 0.775 in19.7 mm |
Distance between Battery Contacts K |
N/A 1.343 in34.1 mm |
Mounting Holes Width J |
N/A 1.125 in28.6 mm |
Mounting Holes Length A |
N/A 4.25 in108.0 mm |
Mounting Holes Diameter M |
N/A 0.144 in3.7 mm |
Cell Type |
N/A D |
Certification |
N/A ISO 9001 RoHS Compliant |
Contact Material |
N/A Brass |
Contact Plating |
N/A Nickel |
Lugs Material |
N/A Brass |
Lug Plating |
N/A Tin |
Frame and Battery Clips Material |
N/A Aluminum 2024-T3 |
Insulating Washers Material |
N/A Fiber |
Insulating Washers Material Type |
N/A Moisture Proof, Resin Impregnated |
Contact Eyelet Material |
N/A Brass |
Contact Eyelet Plating |
N/A Nickel |
