Unit of Measure

Specifications

Material

 N/A Spring Steel

Finish

 N/A Tin-Nickel

Battery Diameter

 N/A 0.669 to 0.748 in17.0 to 19.0 mm

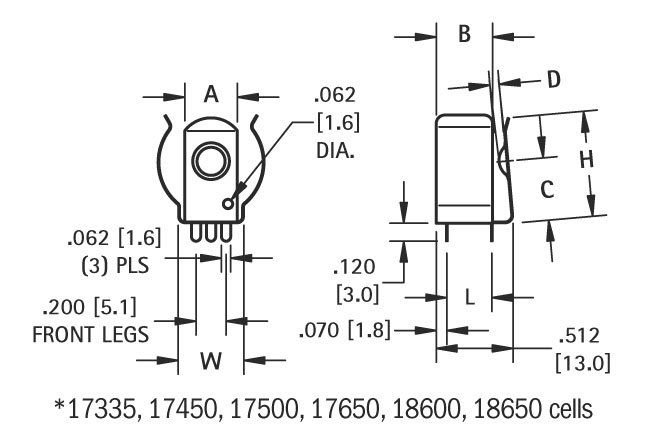

Dimension A

 N/A 0.350 in8.9 mm

Dimension B

 N/A 0.375 in9.5 mm

Dimension C

 N/A 0.385 in9.8 mm

Dimension D

 N/A 0.062 in1.6 mm

Dimension H

 N/A 0.653 in16.6 mm

Dimension L

 N/A 0.300 in7.6 mm

Dimension W

 N/A 0.438 in11.1 mm

Thickness

 N/A 0.012 in0.30 mm

Battery Size

 N/A A 17 to 19 mm

Certification

 N/A ISO 9001 RoHS Compliant

Features

N/A

  • Mounts securely to the PC board with advanced "Snap-In" design for thru hole mounting
  • Reliable spring tension assures low contact resistance
  • Low profile, economical design
  • Retains battery securely to withstand shock and vibration
  • AAAA, AAA, AA, N, 12V, 2/3A, 17-19 mm

Note

N/A For Battery Size - Battery Reference: 2/3A, 17335, 17450,17500, 17650,18500, 18650 cells
