Unit of Measure

Specifications

Material

 N/A Spring Steel

Finish

 N/A Tin-Nickel

Battery Diameter

 N/A No Ears

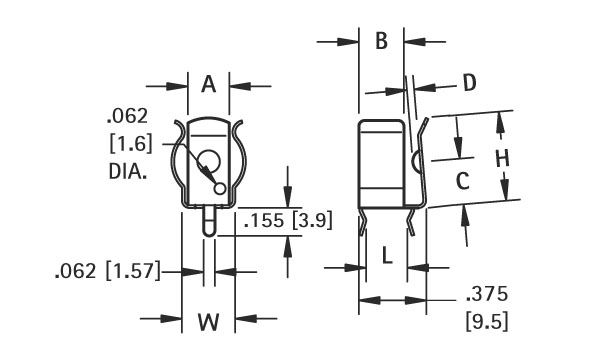

Dimension A

 N/A 0.250 in6.4 mm

Dimension C

 N/A 0.280 in7.1 mm

Dimension D

 N/A 0.032 in0.8 mm

Dimension H

 N/A 0.498 in12.7 mm

Dimension L

 N/A 0.228 in5.8 mm

Dimension W

 N/A 0.250 in6.4 mm

Thickness

 N/A 0.010 in0.25 mm

Battery Size

 N/A AA CR2

Certification

 N/A ISO 9001 RoHS Compliant

Features

N/A

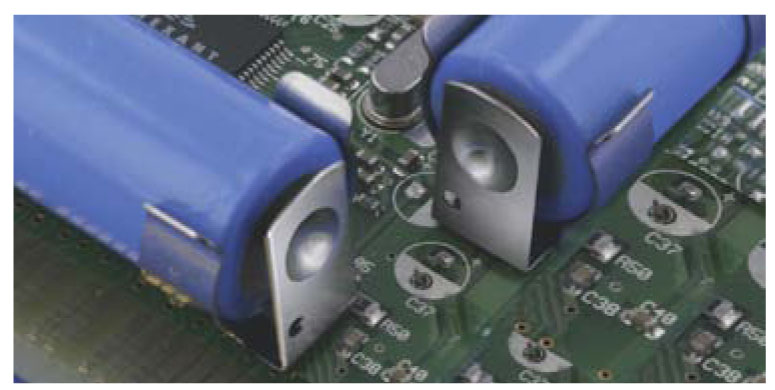

  • Mounts securely to the PC board with advanced "Snap-In" design for thru hole mounting
  • Reliable spring tension assures low contact resistance
  • Low profile, economical design
  • Retains battery securely to withstand shock and vibration
  • AAAA, AAA, AA, N, 12V, 2/3A, 17-19 mm
