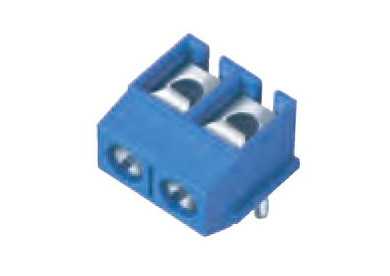

These versatile PC terminal blocks provide a quick and easy method to attach wire leads to a circuit board. Multiple units may be interlocked for strips as long as 24 positions inline. Because of accumulating tolerances, we do not recommend longer strips.
Unit of Measure

Specifications

Entry Type

 N/A Vertical

Spacing

 N/A 5 mm

Positions

 N/A 2

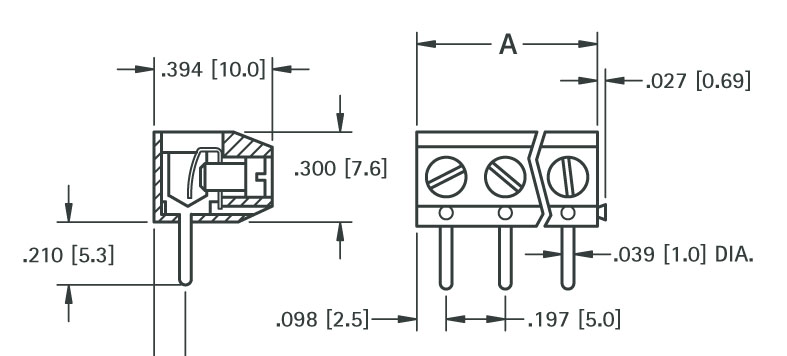

Dimension A

 N/A 0.394 in10.0 mm

Recommended Mounting Hole Diameter

 N/A 0.047 in1.19 mm

Material

Contact Material

 N/A Brass

Contact Material Finish

 N/A Tin Plate

Housing Material

 N/A Blue PBT, UL Rated 94V-0

Screw Material

 N/A Steel

Screw Finish

 N/A Clear Chromate (Captivated) Zinc Plate

Electrical Specifications

Current Rating

 N/A 16 A

Dielectric Strength

 N/A 2500 V

Insulation Breakdown (AC)

 N/A 1500 V/min

Rated Voltage

 N/A 250 V

Mechanical Specifications

Operating Temperature

 N/A 22 to 248 ºF-30 to 120 ºC

Peak Temperature

 N/A +393 ºF+200 ºC

Wire Size

 N/A Accepts #22 to 14 AWG

Features

N/A

  • Wire access available in horizontal, 45º or vertical wire entry
  • Simplifies termination of removable leads
  • Individual leads can be disconnected without disturbing others
  • Wire guard helps prevent damage to conductors
  • Accepts 22-16 AWG wire
  • Mounts easily in pre-drilled or stamped holes
  • 5 mm spacing
