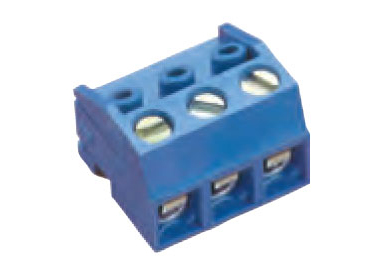

These unique modular terminal blocks are convenient and easy to use. They may be interlocked to achieve the required number of positions. The header pins, for both the 6 and 10 Amp models are supplied in strips of 24. Simply snap off the desired number of positions required and insert into PC board. The modular terminal block can be plugged into the header strip at anytime.
Unit of Measure

Specifications

Entry Type

 N/A Horizontal

Spacing

 N/A 5 mm

Positions

 N/A 3

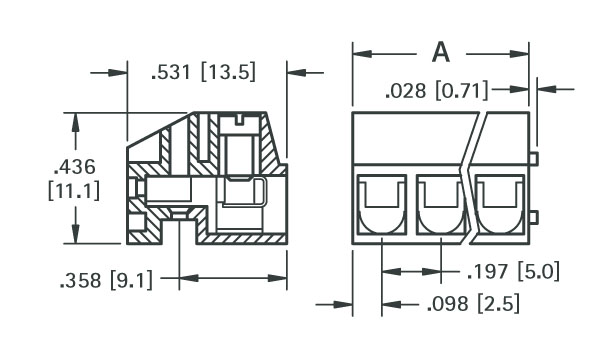

Dimension A

 N/A 0.591 in15.0 mm

Recommended Mounting Hole Diameter

 N/A 0.059 in1.50 mm

Material

Contact Material

 N/A Brass

Contact Material Finish

 N/A Tin Plate

Header Pin Material

 N/A Brass

Header Pin Finish

 N/A Tin Plate

Housing Material

 N/A Blue PBT, UL Rated 94V-0

Screw Material

 N/A Steel

Screw Finish

 N/A Clear Chromate (Captivated) Zinc Plate

Electrical Specifications

Current Rating

 N/A 10 A

Dielectric Strength

 N/A 2500 V

Insulation Breakdown (AC)

 N/A 1500 V/min

Rated Voltage

 N/A 250 V

Mechanical Specifications

Operating Temperature

 N/A 22 to 248 ºF-30 to 120 ºC

Peak Temperature

 N/A +393 ºF+200 ºC

Wire Size

 N/A Accepts #20 to 18 AWG

Features

N/A

  • Space saving low profile design
  • Easy access horizontal wire entry
  • Convenient screw head access on top of terminal block
  • Headers mount easily in pre-drilled or stamped holes
  • Wire guards help prevent damage to conductors
  • Accepts #22-16 AWG wire
  • Because of accumulating tolerances, we recommend a maximum of 24 positions per row
  • Header strips and terminal blocks sold separately

Note

N/A Use header strip to connect to PCB
