Made of high quality steel wire which combines strength with superior forming. The units offer clean, strong butt welds with minimum flash and have consistent guard diameters to enhance maximum air-flow and venting.
Unit of Measure

Specifications

Material

 N/A Steel

Finish

 N/A Nickel Chrome Plate

Fits to

 N/A 150 mm Fans 6.00 in Fans

Wire Diameter (Rings)

 N/A 0.071 in1.80 mm

Wire Diameter (Ribs)

 N/A 0.091 in2.31 mm

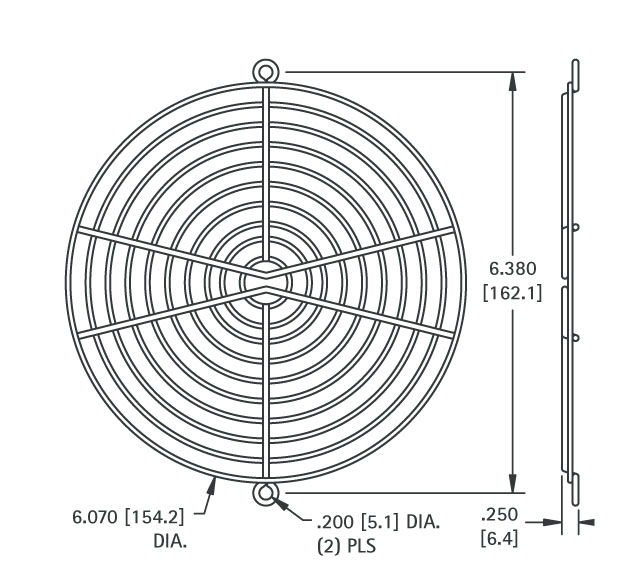

Dimension

 N/A 6.380 in162.1 mm

Thickness

 N/A 0.250 in6.4 mm

Maximum Outer Ring Diameter

 N/A 6.070 in154.2 mm

Rib Diameter

 N/A 6.070 in154.2 mm

Certification

 N/A ISO 9001 RoHS Compliant

Features

N/A

  • Available for most popular size fans
  • Protects fingers as well as fan blades
  • Same mounting hole pattern as standard fans
  • Chrome plate offers a high luster finish
