Made of high quality steel wire which combines strength with superior forming. The units offer clean, strong butt welds with minimum flash and have consistent guard diameters to enhance maximum air-flow and venting.
Unit of Measure

Specifications

Material

 N/A Steel

Finish

 N/A Nickel Chrome Plate

Fits to

 N/A 120 mm Fans 4.50 in Fans

Wire Diameter (Rings)

 N/A 0.071 in1.80 mm

Wire Diameter (Ribs)

 N/A 0.091 in2.31 mm

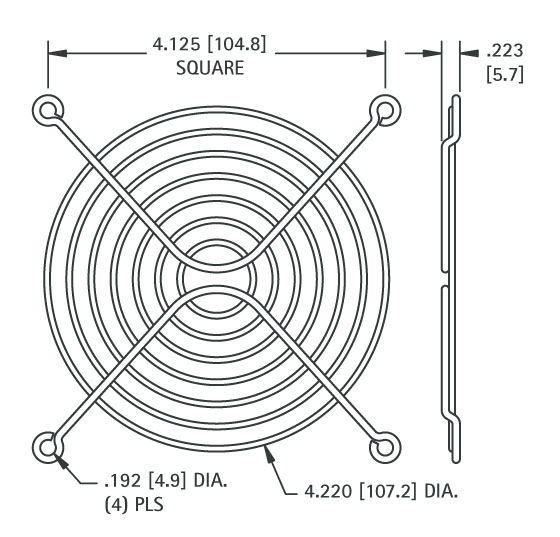

Dimension

 N/A 4.125 in104.8 mm

Shape

 N/A Square

Thickness

 N/A 0.223 in5.7 mm

Maximum Outer Ring Diameter

 N/A 4.220 in107.2 mm

Rib Diameter

 N/A 0.192 in4.9 mm

Certification

 N/A ISO 9001 RoHS Compliant

Features

N/A

  • Available for most popular size fans
  • Protects fingers as well as fan blades
  • Same mounting hole pattern as standard fans
  • Chrome plate offers a high luster finish
