Made of high quality steel wire which combines strength with superior forming. The units offer clean, strong butt welds with minimum flash and have consistent guard diameters to enhance maximum air-flow and venting.
Unit of Measure

Specifications

Material

 N/A Steel

Finish

 N/A Nickel Chrome Plate

Fits to

 N/A 2.50 in Fans 60 mm Fans

Wire Diameter (Rings)

 N/A 0.063 in1.60 mm

Wire Diameter (Ribs)

 N/A 0.063 in1.60 mm

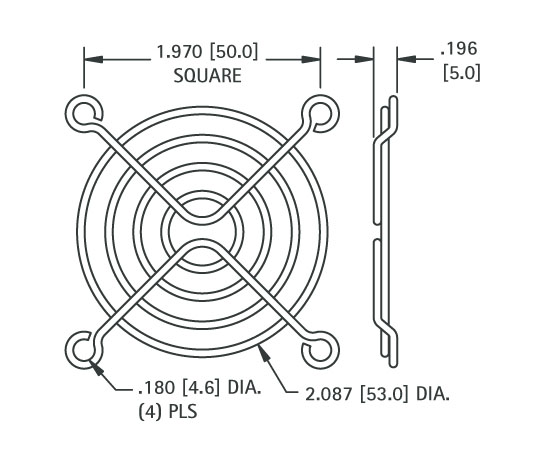

Dimension

 N/A 1.970 in50.0 mm

Shape

 N/A Square

Thickness

 N/A 0.196 in5.0 mm

Maximum Outer Ring Diameter

 N/A 2.087 in53.0 mm

Rib Diameter

 N/A 0.180 in4.6 mm

Certification

 N/A ISO 9001 RoHS Compliant

Features

N/A

  • Available for most popular size fans
  • Protects fingers as well as fan blades
  • Same mounting hole pattern as standard fans
  • Chrome plate offers a high luster finish
