Unit of Measure

Specifications

Base Material

 N/A Nylon 46

Rating

 N/A UL 94V-0

Contact Material

 N/A Phosphor Bronze

Contact Plating

 N/A Tin-Nickel

Contact Material Thickness

 N/A 0.012 in0.30 mm

Operating Temperature

 N/A -60 to +290 ºF-50 to +145 ºC

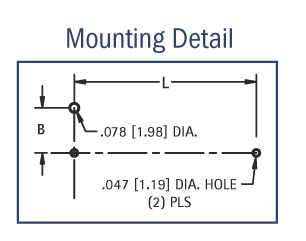

Mounting Style

 N/A Thru Hole Mount (THM)

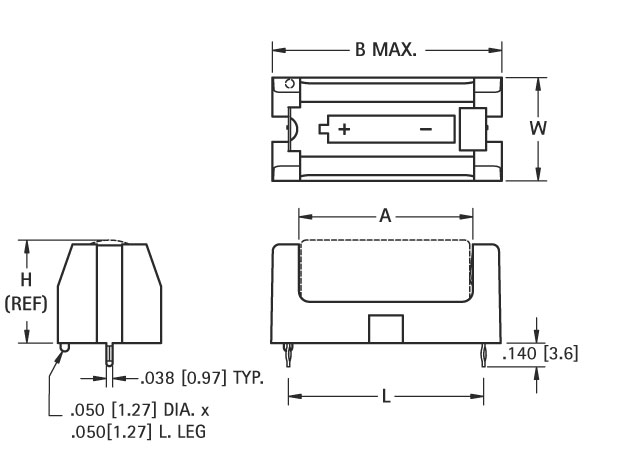

Dimension L

 N/A 1.487 in37.8 mm

Dimension W

 N/A 0.720 in18.3 mm

Reference Dimension H

 N/A 0.712 in

Reference Diameter H

 N/A 18.1 mm

Dimension A

 N/A 1.365 in34.7 mm

Maximum Dimension B

 N/A 1.690 in42.9 mm

Dimension G

 N/A 0.319 in8.1 mm

Cell Size

 N/A CR123A

Certification

 N/A ISO 9001 RoHS Compliant

Features

N/A

  • Low profile surface mount and Thru Hole Mount Holders for Lithium batteries
  • UL 94V-0 Heat resistant Nylon Housings well suited for reflow or wave soldering.
  • Battery installation and removal does not require tools.
  • Securely holds battery in place
  • Polarized holder offers circuit protection against improper battery installation
  • Base Feature: High temperature

Application

N/A

  • Computer memory, power backup systems
  • Telecommunications
  • Residential, industrial security systems
  • PLC and industrial controls

Note

N/A Retainer Cover Fits All Holders
