Shaft Diameter |
N/A 0.250 in6.4 mm |

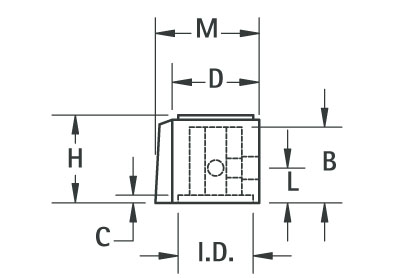

Diameter D |
N/A 0.700 in17.8 mm |
Height H |
N/A 0.625 in15.9 mm |
Maximum Dimension M |
N/A 0.820 in20.8 mm |
Shaft Attachment - L (Location) |
N/A 0.210 in5.3 mm |
Shaft Attachment - B (Depth) |
N/A 0.480 in12.2 mm |
Nut Clearance Inner Diameter |
N/A 0.468 in11.9 mm |
Nut Clearance - C (Center Bore Depth) |
N/A 0.030 in0.8 mm |
Knob Material |
N/A ABS |
Inlay Material |
N/A Spun Aluminum |
Insert Material |
N/A Brass |
Insert Finish |
N/A Nickel Plate |
Certification |
N/A ISO 9001 RoHS Compliant |
