Shaft Diameter |
N/A 0.250 in6.4 mm |

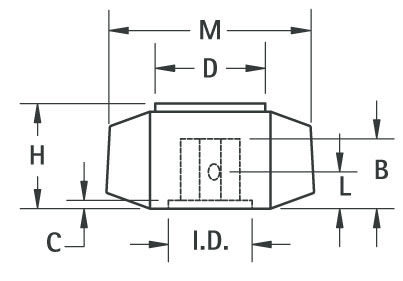

Diameter D |
N/A 0.920 in23.4 mm |
Height H |
N/A 0.640 in16.3 mm |
Maximum Dimension M |
N/A 1.510 in38.6 mm |
Shaft Attachment - L (Location) |
N/A 0.260 in6.6 mm |
Shaft Attachment - B (Depth) |
N/A 0.540 in13.7 mm |
Nut Clearance Inner Diameter |
N/A 0.730 in18.5 mm |
Nut Clearance - C (Center Bore Depth) |
N/A 0.120 in3.1 mm |
Knob Material |
N/A ABS |
Inlay Material |
N/A Spun Aluminum |
Insert Material |
N/A Brass |
Insert Finish |
N/A Nickel Plate |
Certification |
N/A ISO 9001 RoHS Compliant |
