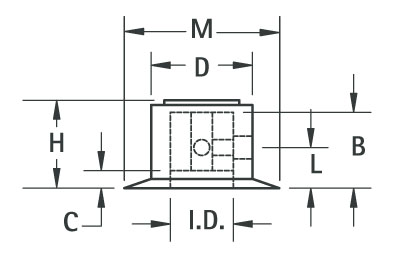

Shaft Diameter |
N/A 0.125 in3.2 mm |
Diameter D |
N/A 0.500 in12.7 mm |
Height H |
N/A 0.660 in16.8 mm |
Maximum Dimension M |
N/A 0.915 in23.4 mm |
Shaft Attachment - L (Location) |
N/A 0.320 in8.1 mm |
Shaft Attachment - B (Depth) |
N/A 0.570 in14.5 mm |
Nut Clearance Inner Diameter |
N/A 0.360 in9.1 mm |
Nut Clearance - C (Center Bore Depth) |
N/A 0.170 in4.3 mm |
Knob Material |
N/A ABS |
Inlay Material |
N/A Spun Aluminum |
Insert Material |
N/A Brass |
Insert Finish |
N/A Nickel Plate |
Certification |
N/A ISO 9001 RoHS Compliant |
