Unit of Measure

Specifications

Height

 N/A 0.280 in7.1 mm

Number of Cells

 N/A 1

Battery Reference

 N/A BR1212, CR1216, CL1220, CR1225 for Cells 1

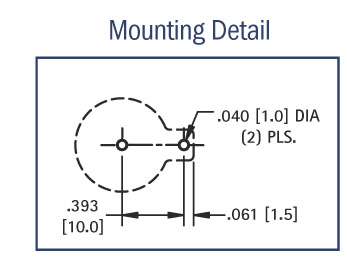

Mount Type

 N/A Thru Hole

Operating Temperature Range

 N/A -60 to +293 º F-50 to +145 º C

Certification

 N/A ISO 9001 RoHS Compliant

Package Type

 N/A Each

Material

Base Material

 N/A Polybutylene Terephthalate (PBT)

Rating

 N/A UL Rated 94V-0

Positive Contact Material Thickness

 N/A 0.015 in0.38 mm

Positive Contact Material

 N/A Spring Steel

Positive Contact Plating

 N/A Tin-Nickel

Negative Contact Material Diameter

 N/A 0.035 in0.89 mm

Negative Contact Material

 N/A Steel

Negative Contact Plating

 N/A Tin-Nickel

Advantage

N/A Design Advantages

  • Reliable spring tension assures low contact resistance
  • Retains battery securely to withstand shock and vibration
  • Base material UL Rated 94V-0. Impervious to most industrial solvents
  • Operating temperature range: -60 ºF to +293 ºF (-50 ºC to +145 ºC)

Application

N/A Ideally Suited For

  • Computer memory, power transfer and back-up systems
  • Video and telecommunications power back-up
  • Microprocessors and Microcomputer memory hold (desktop and laptop applications)
  • Industrial and commercial security and alarm systems
  • PC/104 application
