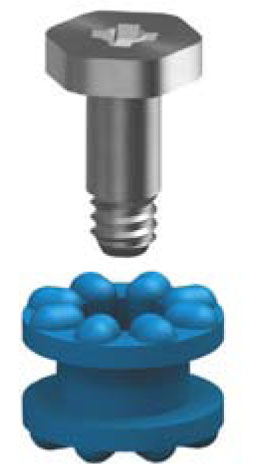

Anti-vibration grommets are designed for noise suppression in office or lab equipment. Additionally, they isolate sensitive instrumentation from unpredictable vibration and shock. The fingers of the grommets provide the flex needed to dampen unwanted noise and vibration. Specially designed shoulder screws are designed to provide the correct spacing.
Unit of Measure

Specifications

Outside Diameter

 N/A 0.411 in11.2 mm

Inside Diameter

 N/A 0.181 in4.6 mm

Height H

 N/A 0.209 in5.3 mm

Panel Thickness A

 N/A 0.031 in0.8 mm

Hole Mounting B

 N/A 0.315 in8.0 mm

Shoulder Screw Length

 N/A 0.197 in5.0 mm

Shoulder Screw Thread

 N/A M3

Shoulder Screw D

 N/A 0.394 in10.0 mm

Color

 N/A Blue

Head

 N/A Round

Isolator Material

 N/A EPDM Rubber

Shoulder Screw Material

 N/A Steel

Shoulder Screw Finish

 N/A Nickel

Certification

 N/A ISO 9001 RoHS Compliant

Note

N/A Screw supplied unassembled with isolator
