  • Insulates and shields 9 Volt battery snap-on connector contacts
  • Assures safe secure use, reduces the potential of short circuits and prevents tampering with battery contacts
  • Protects circuits, prevents unwanted electrical discharge due to unintended grounding
  • Protects battery contacts from dust, dirt, and physical damage

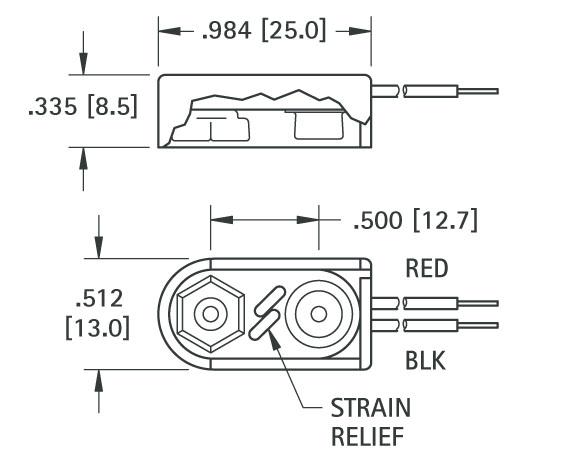

  • Ideal for rugged applications, made of high impact molded plastic with integral wire lead strain relief
Unit of Measure

Specifications

Style

 N/A I-Style
Lead Length1 N/A 4.00 in101.6 mm

Type

 N/A Molded Shielded

Base Material

 N/A Acrylonitrile Butadiene Styrene (ABS)

Contact Material

 N/A Brass

Contact Plating

 N/A Nickel

Wire Colors

 N/A Black Red

Wire Size

 N/A #26 AWG

Wire Coating

 N/A Tinned

End Strip Length

 N/A 0.187 in4.8 mm

Wire Rating

 N/A UL/CSA #1007

Battery Voltage

 N/A 9 V

Certification

 N/A ISO 9001 RoHS Compliant

Note

N/A Modifications available with different wire lengths.

  • 1 Tolerance on lead length: ±0.250 in (6.4 mm)
